ZC's SafetyFrame product offers diverse application scenarios and is suitable for various controllers, supporting a wide range of mainstream chips.

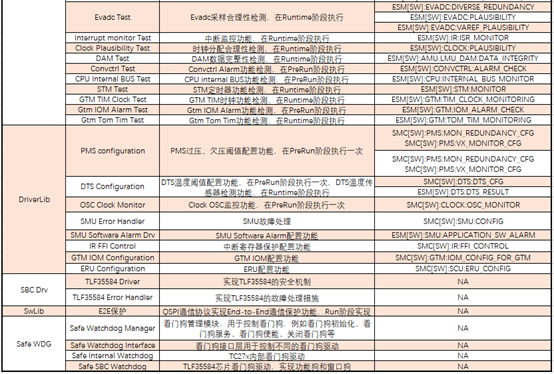

ZC customized a specialized product for Customer A based on their requirements, completing the following functionalities on the TC397 chip of the ADSA controller. The software design complies with ASIL-D Functional Safety requirements:
Design and development of the TC397 ESM driver.
Design and development of the TLF35584 driver.
Design and development of the Error Handling driver.
Feature List:
TC397 ESM Driver: Ensures effective error signaling and management.
TLF35584 Driver: Provides comprehensive control and management for the TLF35584 safety power supply chip.
Error Handling Driver: Facilitates robust error detection and handling mechanisms.
ASIL-D Compliance: Meets the highest level of Functional Safety requirements.
Scalability and Compatibility: Designed for integration into ADAS controllers using Infineon TC3xx chips.
Traceability: Follows ASPICE-compliant processes, ensuring complete traceability from requirements to testing.
Customizable Design: Supports project-specific customization for efficient implementation.

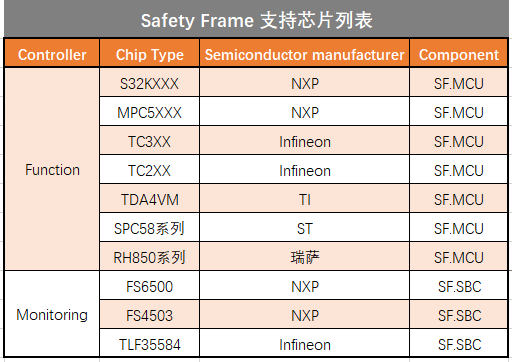

Shanghai ZC Technology Co., Ltd.'s SafetyFrame software supports a wide range of mainstream chips, including Infineon TC2xx series, TC3xx series, NXP MPC5xxx series, S32K1xx series, TI TDA4VM, ST SPC58 series, and Renesas RH850 series. The variety of supported chips places it at the forefront of the industry.
ZC SafetyFrame Product Overview
The diverse application scenarios of the SafetyFrame product have enabled ZC to establish deep collaborations with multiple automotive companies.
Features and Characteristics of SafetyFrame:
ZC.MuNiu Configuration Tool: Supports AUTOSAR 4.2.2 and AUTOSAR 4.4 standards.
ASIL-D Compliance: Designed to meet ASIL-D Functional Safety application requirements.
ASPICE-Compliant Process: Ensures traceability from customer requirements, MCU Safety Manual, Safety Library code, to test reports.
Proprietary Safety Software Architecture: Incorporates EGAS Monitoring Controller mechanism.
SwLib Self-Test Library: Implements software flow monitoring with E2E functionality, offering flexible interfaces and reducing customer redevelopment efforts.
AUTOSAR Complex Driver Integration: Compatible with semiconductor MCAL driver packages.
Internal Watchdog Management: Optionally integrates ZC's SBC product library to achieve complete Safety WdgM functionality.
Test Manager Integration: Includes MCU fault collection drivers (e.g., SMU/FCCU) to support Safety Goal compliance with FTTI safe shutdown monitoring requirements.
Customizable TestLib: Chip self-test library supports module-specific customizations for short project timelines, optimizing code size and reducing software footprint.
Non-AUTOSAR Compatibility: Ensures seamless integration with non-AUTOSAR ECU software architectures for certain customer products.
Company Introduction
Shanghai ZC Technology Co., Ltd., located in the Lingang New Area of the China (Shanghai) Pilot Free Trade Zone near Dishui Lake, is a professional automotive software company specializing in the R&D of automotive electronic controller products and technical services.
Recognized as a National High-Tech Enterprise and one of the 24 key enterprises in the new energy and connected vehicle sector in Lingang, ZC boasts a team where 90% of employees are R&D personnel, with an average of over 10 years of industry experience.
The company has long been engaged in:
R&D and services for new energy vehicle "Three-Electric" system controllers and connected vehicle controllers.
Development and service of AUTOSAR basic software products, Functional Safety, and Cybersecurity solutions.
Amid the industry trends of electrification, connectivity, intelligence, and software-defined vehicles, ZC provides high-quality, high-efficiency, and cost-effective solutions to the automotive industry.
