Project Background

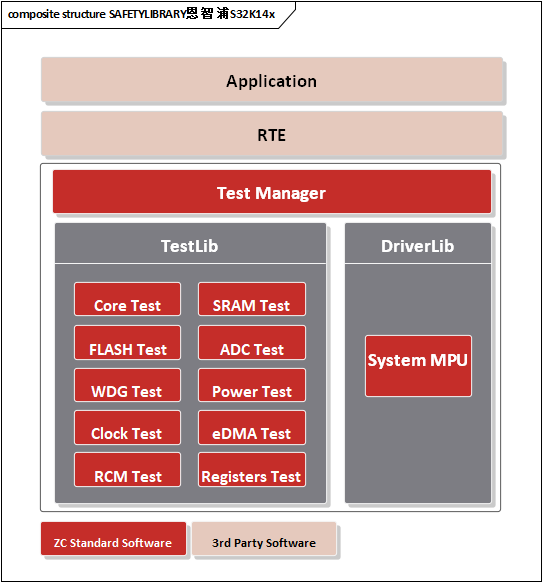

This project is based on the NXP S32K146 platform, providing a functional safety library to a Tier‑1 supplier for a gateway controller. The gateway controller delivers 10G gateway functionality for General Motors in North America and has achieved low‑volume mass production. The S32K146 chip is used for power management and functional safety monitoring of the gateway controller. The S32K14x Safety Library supplied by Zhichong implements software safety mechanisms for the S32K146 platform, including testing of internal MCU modules and drivers for hardware safety mechanisms, thereby ensuring the functional safety of the entire gateway controller.
Technical Details
The project tackled the following core technical challenges in software development: breaking through the cross‑module collaboration bottleneck between power management and safety monitoring to achieve extreme‑condition response latency ≤50 μs; decomposing 12+ core MCU modules and implementing a layered testing strategy with automated verification to achieve 100% test coverage across 3,000+ use cases; optimizing the hardware safety‑driver architecture to resolve multi‑protocol compatibility issues, achieving a failure rate ≤10⁻⁹ and meeting the 1,000‑hour continuous fault‑free standard; and deeply adapting the S32K14x Safety Library. These efforts constructed a closed‑loop software safety protection system, providing core support for the gateway’s functional safety compliance and stable mass‑production operation.
Project Highlights
The safety library integrates core capabilities such as internal MCU module testing and hardware safety mechanism drivers, significantly shortening the customer’s functional safety development cycle and substantially reducing R&D investment costs. Supported by a full‑process technical support system, Zhichong responded efficiently to customer needs, establishing a robust protection barrier for the gateway controller’s power management and functional safety monitoring with stable and reliable software safety mechanisms, which strongly accelerated the project’s path to mass production.
