ZC.Muniu Saftylibrary Based On NXP MPC5748G
Product Description
The MPC5748G Safety Library is designed to assist customers in achieving functional safety requirements based on the MPC5748G platform. The Safety Library is highly scalable and can be configured and redeveloped according to different customer project requirements, ultimately meeting the customers' functional safety requirements.
Detailed Introduction

     Product Feature


Ø  Can be integrated as a complex driver into AUTOSAR .

Ø  Meet the different safety level requirements of the controller.

Ø  Can be integrated into non-AUTOSAR software architecture.

Ø  High scalability: Each module is configurable to meet different customer requirements.

Ø  Internal Program Flow Monitoring of the Safety Library.

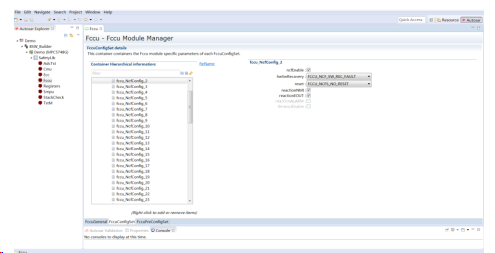

Configuration Tool


To meet the diverse project requirements of customers and enhance the scalability of the Safety Library, the MPC5746G Safety Library has implemented the configurability of each module and has developed a configuration tool for the Safety Library. Customers can complete the configuration of various modules of the Safety Library using the configuration tool according to different needs. They can generate configuration code files, and integrate the generated configuration files into the project.


Run Phase


Ø  Pre-Run Phase

      This phase is for testing the safety mechanisms of the MCU. During this phase, the Fault Control and Communication Unit (FCCU) is in the Normal state, and this phase is generally performed before the operating system (OS) starts up.

Ø  Run Phase

      This phase occurs while tasks are running. The FCCU remains in the Normal state, and this phase takes place during the operation of the OS.

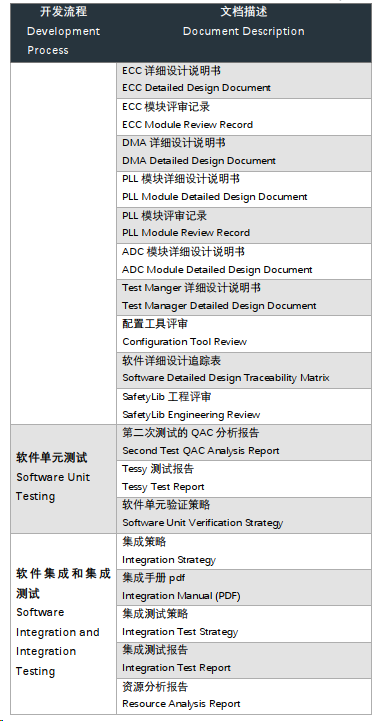

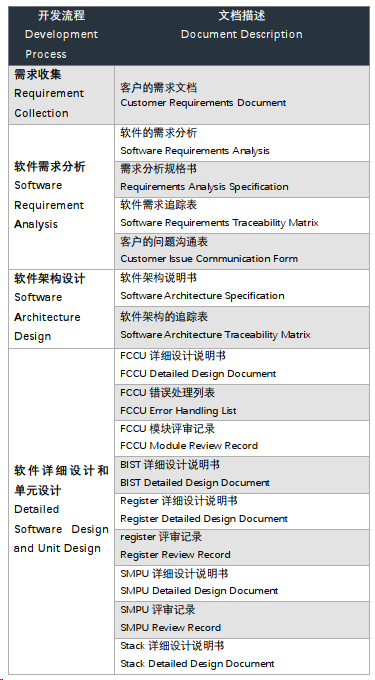

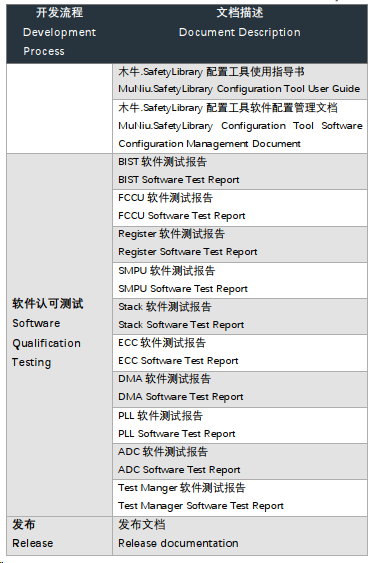

     Process Documentation

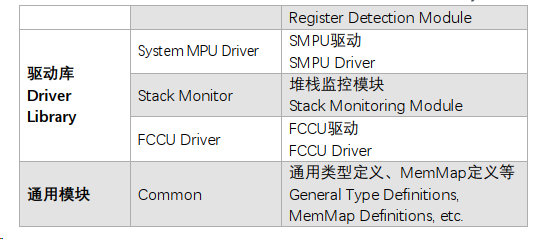

Function Summary

The MPC5746G Safety Library is designed to assist customers in achieving functional safety requirements based on the MPC5746G platform. The Safety Library is highly scalable and can be configured and redeveloped according to different customer project requirements, ultimately meeting the customers' functional safety requirements.

      The MPC5746G Safety Library is used to implement the software safety mechanisms of the MPC5746G , including the testing of internal MCU modules and the driving of hardware safety mechanisms.


Application Field

The MPC5748G Safety Library can be applied to controllers that require functional safety levels. For example:

Ø  In-Vehicle Entertainment Gateway Controller

Ø  Battery Management System

Ø  Body Controller

By integrating the Safety Library into the control based on MPC5744G, it is possible to meet the ISO 26262 ASIL-D level requirements.

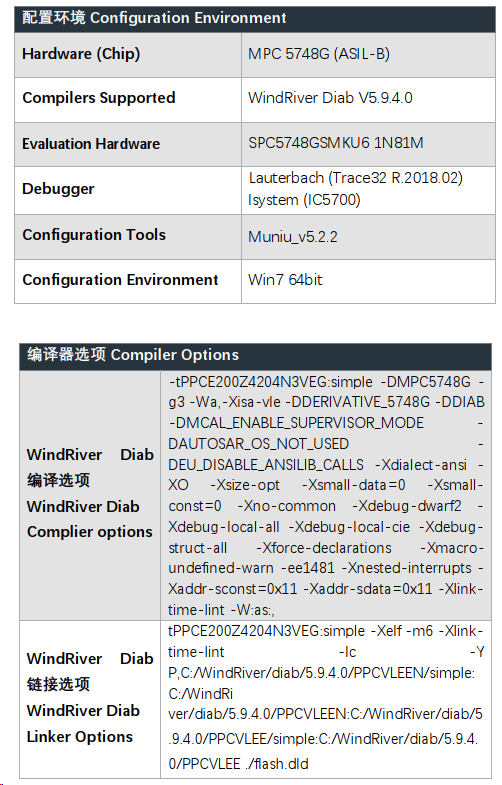

Configuration Environment

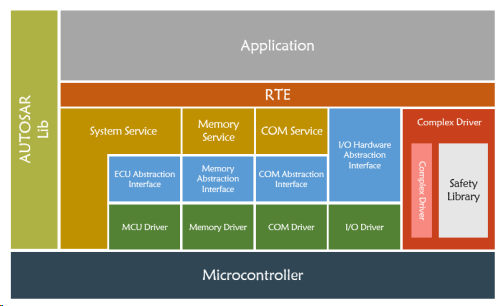

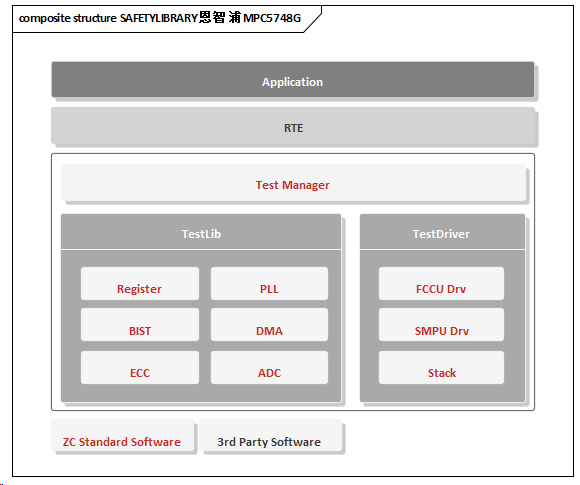

Software Architecture



Related Certificate

Functional Safety Certificate


CERTIFICATE


ZC.MUNIU SOFTWARE COPYRIGHT REGISTRATION CERTIFICATE


ZC. MUNIU SOFTWARE PRODUCT REGISTRATION CERTIFICATE


Download
Product Manual

Click to download the product manual
