ZC.XuanWu (ZC.XuanWu), as an upper computer software, provides solutions for automotive electronics applications related to diagnostic modules, including program flashing, diagnostic services, diagnostic testing, etc., and offers customized services.

Currently, it supports diagnostic specifications from vehicle manufacturers such as GAC, Changan, SAIC, FAW, Dongfeng Commercial Vehicles, Dongfeng, Shanghai General Motors, Geely, Chery, SGMW, Saab, Great Wall, BAIC New Energy, XPeng Motors, NIO, Audi, and Volvo (listed in no particular order).

 Product Features

ZC Technology has launched the ZC.XuanWu diagnostic and testing tool with the following features:

Ø  Easy to Operate

n Graphical user interface for easy configuration

n  Automatically parses diagnostic data such as DID and DTC from Excel

n  Can import diagnostic configurations and standards from different OEMs

Ø  Flexible to Use

n  Supports CAN, CAN FD, Kline protocols

n  Supports standards such as ISO 14229, ISO 15765, ISO 14230

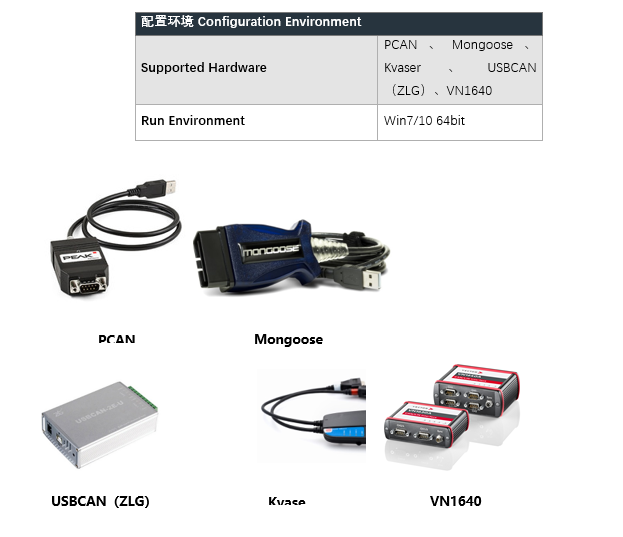

n  Supports multiple hardware interfaces

Ø  Diagnostic Testing Support

n  Diagnostic debugging

n Can import and parse diagnostic inquiry forms in Excel

n  Automatically generates test cases based on diagnostic inquiry forms

n Provides a Python API interface, supporting the development of Python test cases

n  Supports Python automated testing

Ø   Diagnostic Testing Support

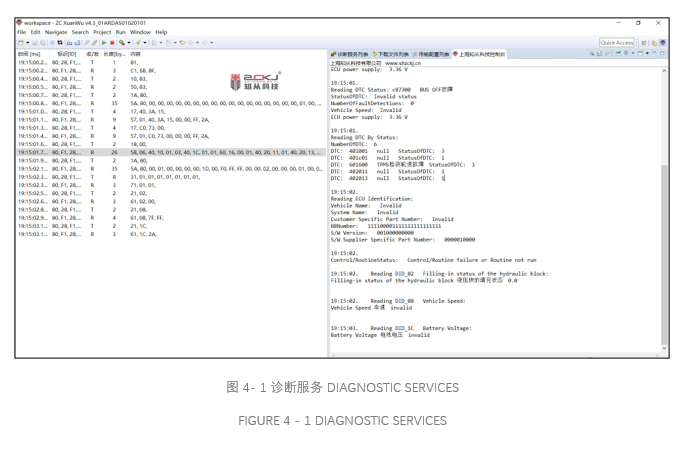

 Diagnostic Services

ZC.XuanWu supports the user in sending single or multiple diagnostic message services to the ECU. Users can select the required diagnostic services through the interface, complete the data transmission to and from the ECU, and record the detailed data communication process in the log file.

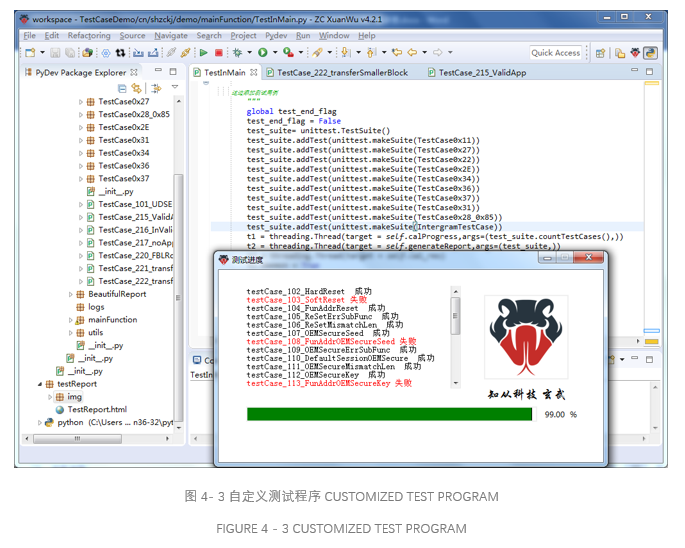

 Test Cases

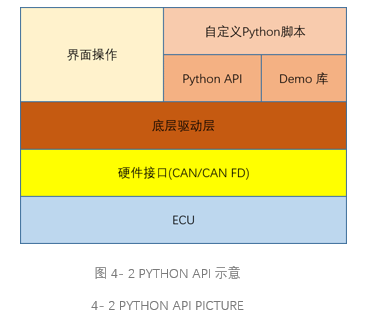

ZC.XuanWu supports the development of test cases based on Python and also provides a Python API interface for diagnostic services, facilitating secondary development by users.

ZC.XuanWu has established a test case library according to the diagnostic specifications of various vehicle manufacturers. After importing into ZC.XuanWu, diagnostic service testing can be conducted directly. Moreover, users can modify and develop their own test case libraries based on this foundation.

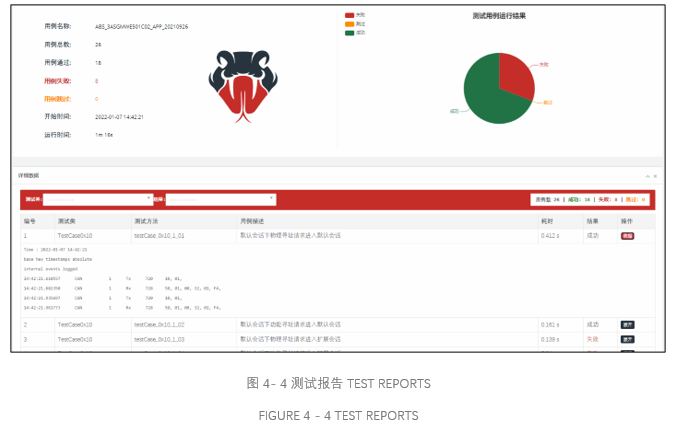

Test Reports

In response to test results, ZC.XuanWu tool can automatically generate test reports

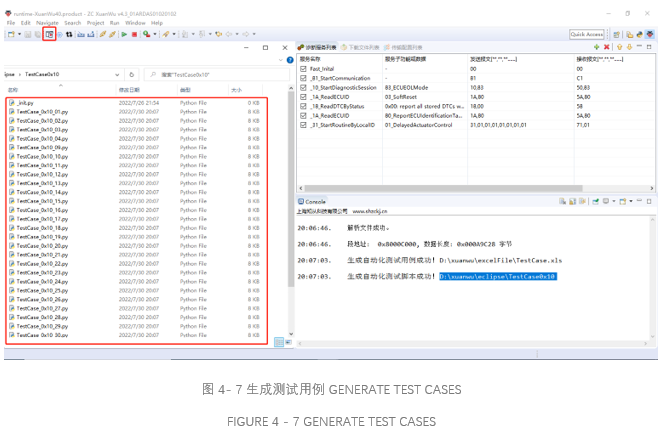

Test Case Generation

After ZC.XuanWu imports the diagnostic inquiry spreadsheet in Excel, it can generate test cases and automated test scripts.

Custom Development

XuanWu supports custom development, creating independent versions based on user requirements.

ZC.XuanWu diagnostic and testing tool can be applied in various scenarios for OEMs and Tier 1 suppliers. Users can conveniently perform diagnostics and testing in laboratories, test vehicles, and production vehicles.

In addition, ZC.XuanWu also supports the import of diagnostic inquiry forms in Excel, automatic generation of test cases, and Python-based automated diagnostic testing functions, greatly expanding its application range.

ZC.XuanWu Software Copyright Registration Certificate

ZC.XuanWu Software Product Registration Certificate
