1      PRODUCT FEATURE

Ø Based on the Eclipse platform and Artop architecture, with plug-in development and strong extensibility.

Ø Supports importing Excel diagnostic survey forms and importing DEXT files.

Ø Supports consistency checks for configuration data.

Ø Supports exporting DEXT, ODBX, and CDD files.

Ø Supports data exchange in ARXML format.

Ø Can be flexibly configured and tailored to customer requirements.

Ø A powerful error-checking and prompt-correction mechanism.

2      FUNCTIONAL DESCRIPTION

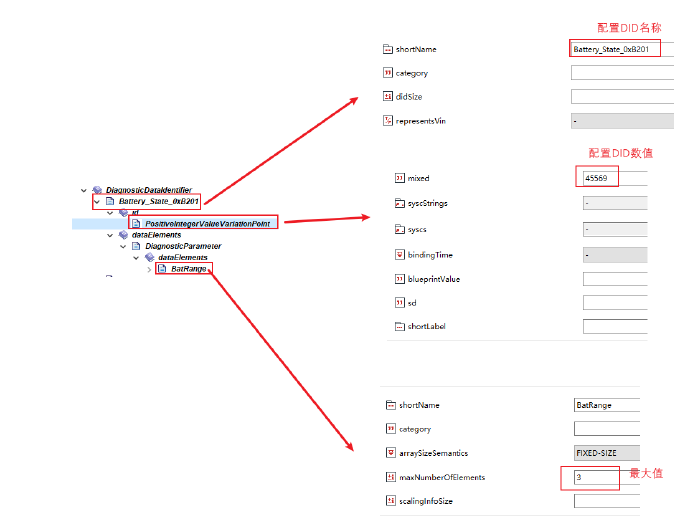

2.1     DID Configuration

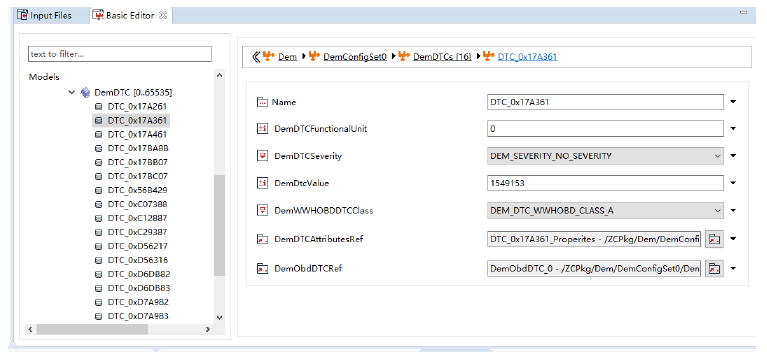

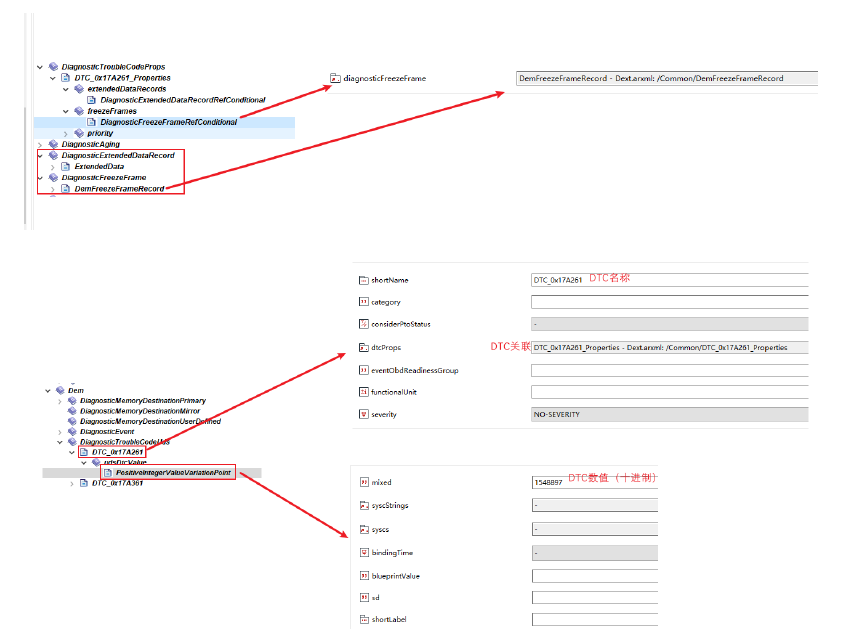

2.2     DTC and Snapshot Configuration

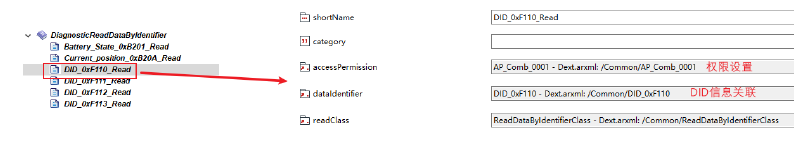

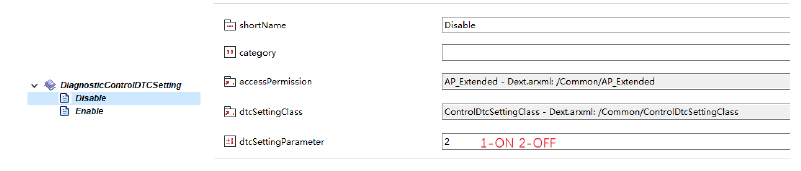

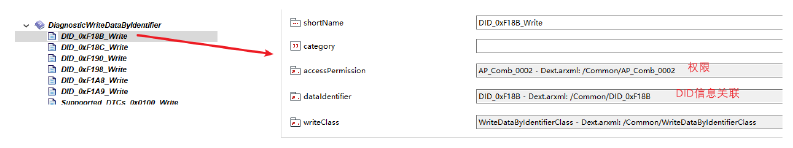

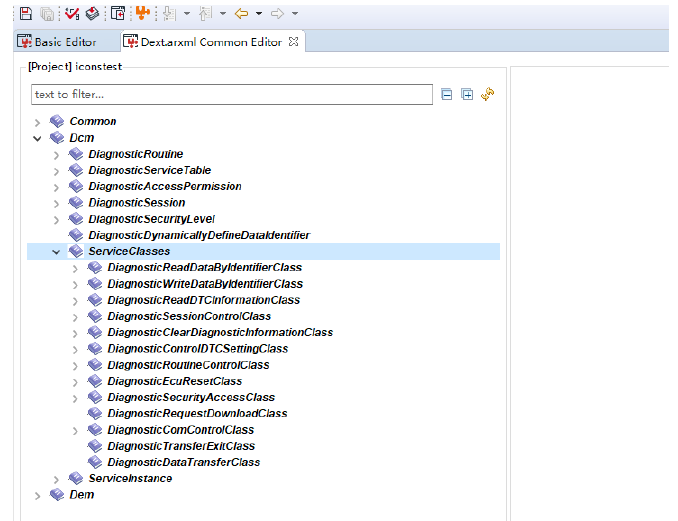

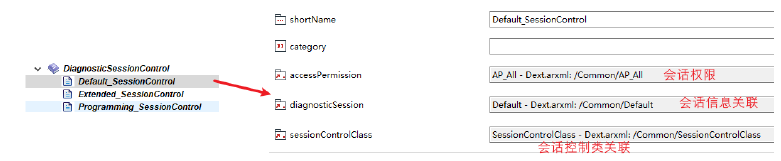

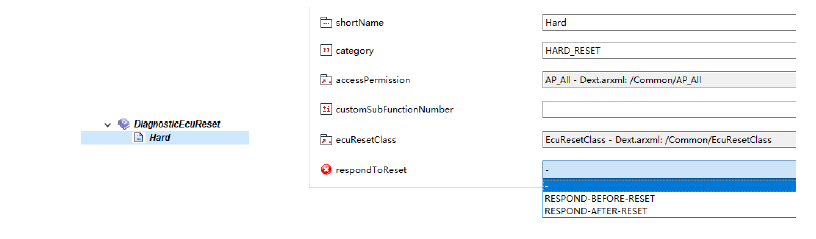

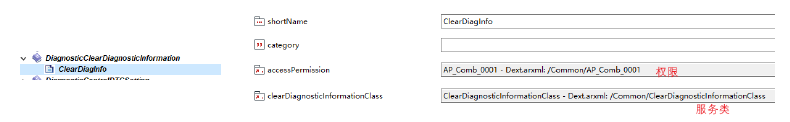

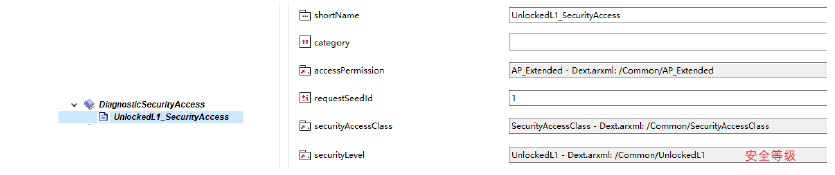

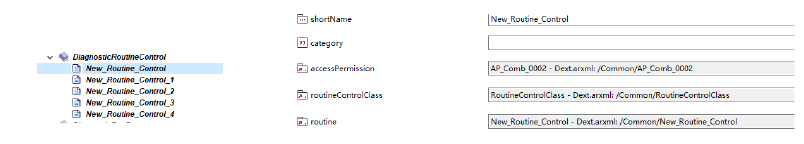

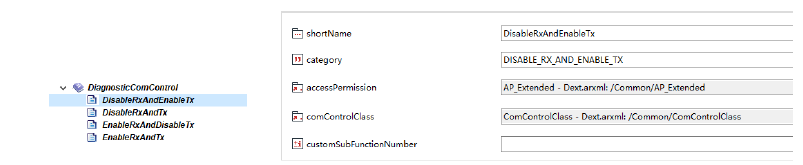

2.3     Diagnostic Service Configuration

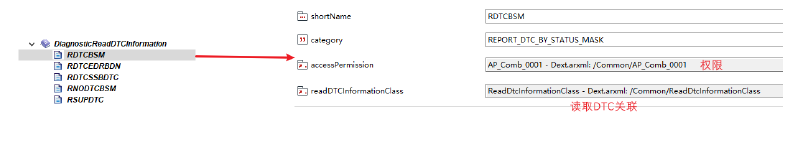

22Service Configuration

2EService Configuration

19Service Configuration

10Service Configuration

14Service Configuration

31Service Configuration

11Service Configuration

27Service Configuration

28Service Configuration

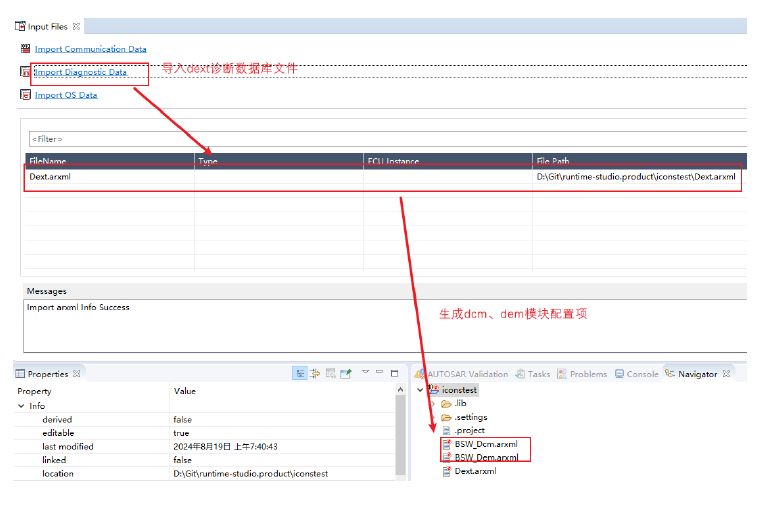

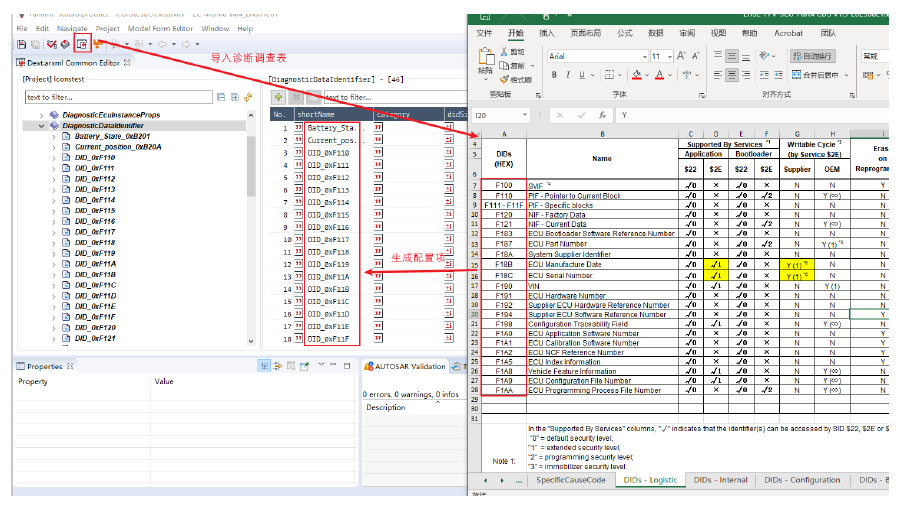

2.4     Import Diagnostic Survey Forms to Automatically Generate Configuration

2.5     Export DEXT Files, Import into ZC.MuNiu Configuration Tool to Automatically Generate DCM and DEM Modules

In the automotive industry, diagnostic databases such as DEXT, ODBX, and CDD are commonly used. The DEXT database is primarily used for importing into configuration tools, facilitating users to quickly generate DEM and DCM modules. When building a DEXT database, we face the challenge of entering massive amounts of data and dealing with diverse data formats. This process is time-consuming and labor-intensive, requiring significant human resource investment, while the error rate remains high, severely affecting development efficiency and progress.

To address this issue, ZC has independently developed the ZC.MuNiu DEXT STUDIO software. This software uses standard Excel diagnostic survey forms to describe the diagnostic communication specifications of ECUs and can automatically convert Excel files into various data formats such as DEXT/ODX/CDD. The DEXT software has a simple and intuitive user interface and features one-click conversion, significantly reducing labor costs and improving work efficiency, thereby greatly advancing the development speed of projects.

DEXT STUDIO can be used in application scenarios such as diagnostic module development and testing.

For example:

Ø  Generate DEXT files for import into configuration tools like ZC. Configurator to generate diagnostic DEM and DCM configurations, and it also supports import into third-party tools such as Davinci Configurator, EB tresos, ISOLAR, etc.

Ø  Generate ODBX files for import into diagnostic tools like ZC.Xuanwu for diagnostics and data parsing, and it also supports import into third-party tools such as Canoe, Can Diva, etc.

Ø  Generate CDD files for import into CANOE, DIVA for automated testing.

ZC.MuNiu configuration tool is developed based on the latest architecture of the AUTOSAR configuration tool.

Ø  Eclipse Oxygen.3a Release (4.7.3a)

Ø  ARTOP-SDK-4.13.0 (supports the latest AUTOSAR releases 4.4.0)

Ø  ARTEXT-SDK-1.7.2 1.6.0.

Ø  CDT 8.1.2

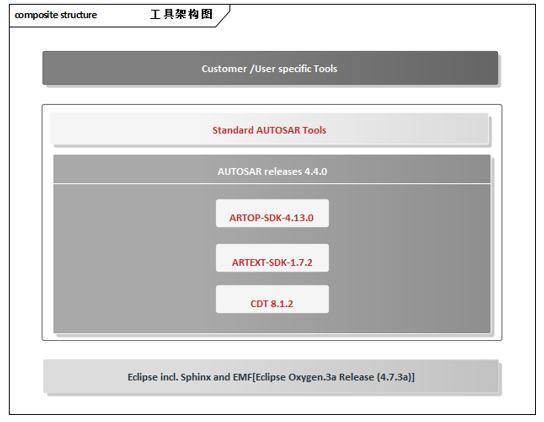

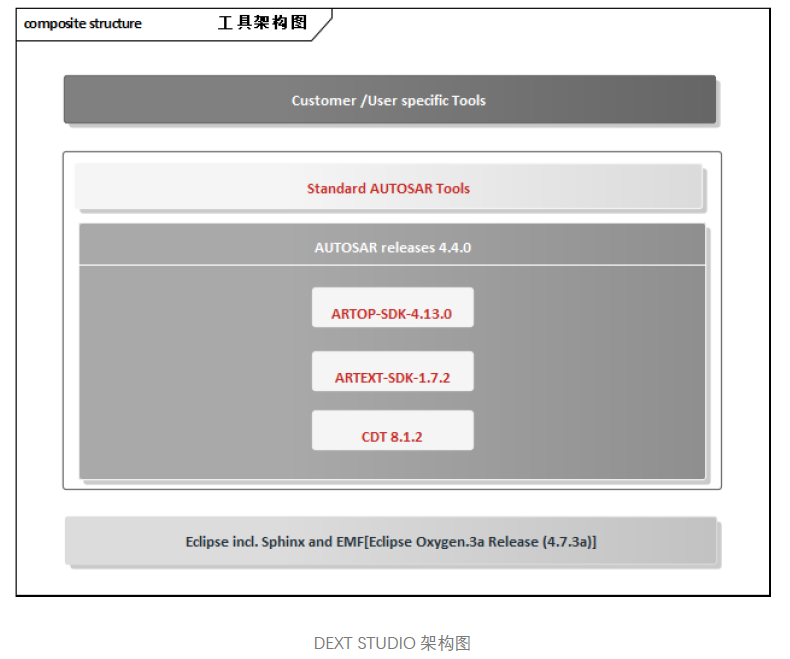

Architecture Diagram

Click to download the product manual
