Product Introduction

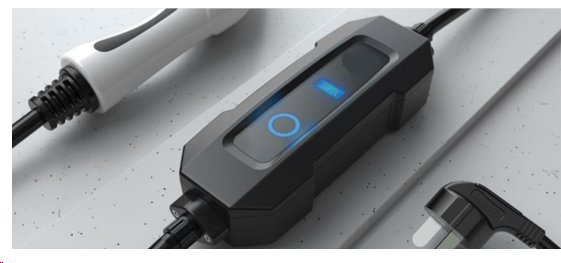

This product is a portable charger for electric vehicles that complies with GBT18487-2015, Pattern II. The charger consists of a charging gun head, charging cable, line control box, and a three-prong plug. The line control box houses a control circuit board that integrates ground wire detection, voltage and current detection, CP control detection circuits, relays, and control circuits. The display panel features a ring indicator light in blue, green, and red colors, as well as an OLED screen to indicate the working status of the charger. The integrated Bluetooth wireless communication module within the control circuit of the line control box can connect with mobile client software to set up the charger's operation and to keep statistical records of the charger's usage.
Main Features
Ø Safe and Reliable: Equipped with built-in leakage detection and ground wire detection functions to ensure personal safety, with an IP65 protection rating for worry-free outdoor use. Seat module
Ø User-Friendly Interface: The line control box integrates a 0.96-inch OLED display, showing real-time charging status, charging current, and the operating temperature of the charger. High-end gateway controller.
Ø Intelligent Design: Features Bluetooth communication capabilities, allowing for scheduling and power settings through a mobile phone.

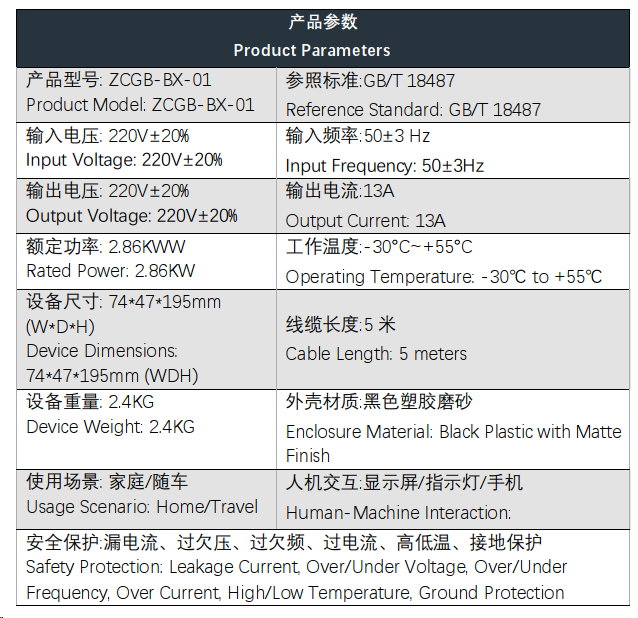

Product Parameters
Company Introduction
Shanghai ZC Technology Co., Ltd. is located by the Dishui Lake in the Lingang New Area of China (Shanghai) Pilot Free Trade Zone. It is a professional automotive software company engaged in the research and development of automotive electronic control products and technical services. As a national high-tech enterprise and one of the 24 key new energy vehicle internet of vehicles (IoV) enterprises in Lingang, it boasts a team with 90% of its members being R&D personnel, who have an average industry experience of over 10 years. The company has been committed to the development and service of controllers for the three electric systems of new energy vehicles, IoV controllers, and AUTOSAR basic software products. It also focuses on the development and service of functional safety and cybersecurity products. Under the trend of electrification, connectivity, intelligence, and software-defined characteristics in the automotive industry, the company provides high-quality, efficient, and cost-effective solutions for the sector.
