ZC ADAS Domain Controller Based on Infineon MCU TC397
Detailed Introduction

Product Introduction

With the rising tide of intelligence in automobile industry, it has become a practical choice for many main engine factories to promote the application of products in the direction of assistant driving.

ZC TC397 ADAS domain controller is used as the engineering sample / engineering development platform to facilitate the rapid prototyping stage for customer and accelerate the product development. Based on this engineering sample / engineering development platform, customers can integrate FCW、EBA、AEB、ACC、LDW、LCK、ELK、HBA、TJA/ICA、HWA、TJP、ESA、BSD、LCA、RCTA、FCTA、RCW、DOW、UPA、APA、RPA and so on.

Based on the Infineon TC397 chip, this hardware product provides the peripheral functions such as on-board Ethernet, CANFD, Lin, high-drive, low-drive, etc. According to the diagnosis of these functions and power supply, customers can carry out the design and development required by ISO 26262 ASIL D.


Product Feature

TC397 ADAS domain controller is used for the L2 + autopilot scenario, including but not limited to:

ØHighway scenario, HWA/TJP

ØLow-speed parking scenario, RPA

ØMedium-speed city scene, TJA

This product supports both L3 and above autopilot scenarios. It can be used as a safety redundant sub-controller, and cooperate with the main autopilot controller, so that the autopilot function can reach the level of ISO2662 ASIL-D level requirements

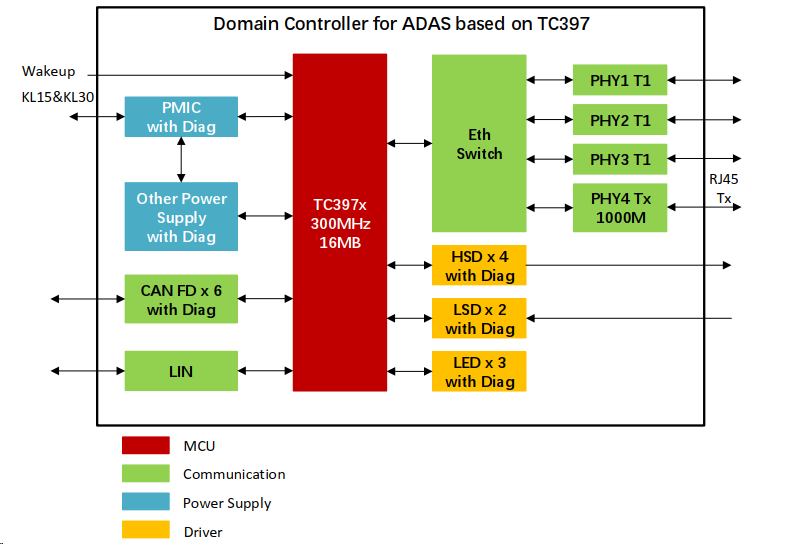

The product architecture is as follows:


Ø6 way CAN FD with maximum speed of 5M.

Ø3 way vehicular Ethernet, the maximum speed up to 100M

Ø1 way 1000M Tx Ethernet, supports debugging or recording data.

Ø4 way High Side, ADAS in-domain sensor power management.

Ø2 way Low Side, ADAS function alarm lamp driver.

Ø2 way LIN with access to ultrasonic sensors.

ØPrepare for ASIL D design to support multiple diagnostics.

ØSupport for OTA upgrades

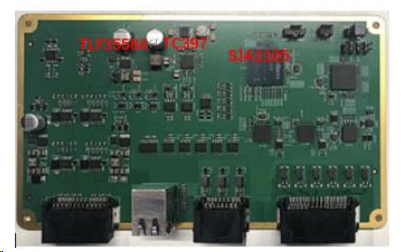

ØThe main chip information is as follows:

TC397, Infineon latest generation MCU, 6 core, suitable for DCU development, supports HSM, Gigabit Ethernet, and ultra-high computing power, supports ASIL D.

ØTLF35584, Infineon PMIC chip, provides high-precision DCDC power supply and LDO power supply, integrated window watchdog and function watchdog module, and provides a variety of diagnostic functions to facilitate the implementation of ASIL D.

ØSJA1105, NXP 5 way vehicular Ethernet switching chip, each way can be configured to MII, RMII, RGMII mode, suitable for BroadR-Reach PHY. It also can connect fast Ethernet and Gigabit Ethernet PHY.

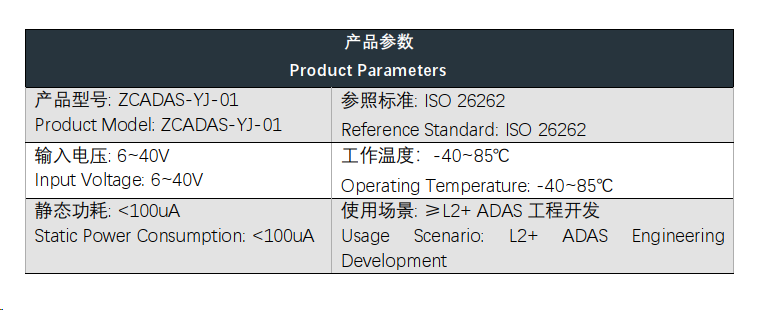

Product Parameter


Company Introduction

Shanghai ZC Technology Co., Ltd. is a national high-tech enterprise specializing in the research and development of automotive electronic controller products and technical services, located at the bank of Link Lake in Lingang area of the Shanghai Pilot FTZ, P.R. China. It is also one of the 24 key enterprises of new energy vehicle networking in Lingang area. R & D personnel accounted for 90%, their industry average working life is more than 10 years. ZC has long been engaged in the development and service of new energy vehicle tri-electric system controllers, vehicle network controllers, AUTOSAR basic software products, as well as functional safety and ASPICE engineering services. Under the general trend of automotive electromotion, networking and intelligence, ZC provides high-quality, high efficiency, low cost solutions for the entire automotive industry.



Download
Product Manual

Click to download the product manual
