ZC MCAL Product Customization And Development Service Manual

Product Description

ZC provides customers with AUTOSAR MCAL configuration services, as well as engineering experience in MCAL software production for chip companies. It has used multiple chips from Infineon, NXP, Renesas, STMicroelectronics, and has completed mass production and development of controller products such as BMS, MCU, HCU, BCM, Gateway, etc. At present, we have established cooperative relationships with multiple chip manufacturers such as Infineon, NXP, and STMicroelectronics.

Introduction

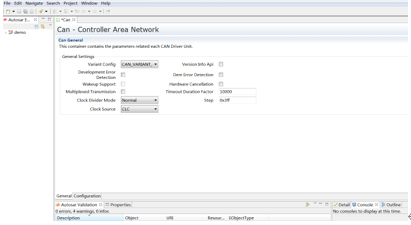

ZC can provide customers/chip companies with customized AUTOSAR Microcontroller Abstract Layer(MCAL) software product development services, and also provides configuration tools. Customers/chip companies can use the ZC.MuNiu configuration tool for configuration and automatic code generation.

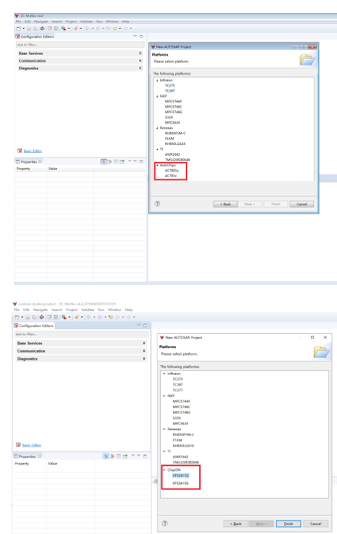

ZC has rich engineering experience in the field of automotive electronics. It has completed mass production and development of controller products such as BMS, MCU, HCU, BCM, Gateway, etc. using many chips such as ChipON and AutoChips.

Detailed Introduction

1 MCAL CUSTOMIZED DEVELOPMENT SERVICES

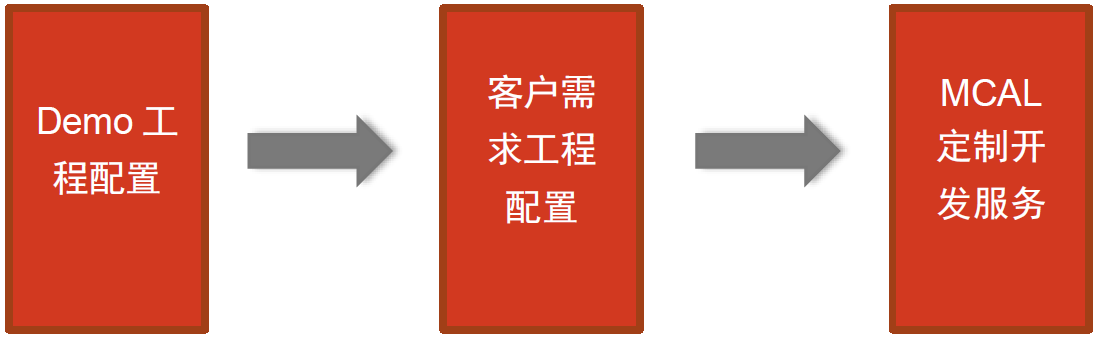

ZC can implement three stages of MCAL configuration development services based on customer requirements. The service stages include: customized development services, Demo engineering configuration, and customer demand engineering configuration.

ØMCAL Customized Development Services

If the customer has specific requirements for chip drivers that cannot be met in MCAL, ZC will complete customized development services for MCAL based on the customer's requirements. Know from the use of technology. The Muniu configuration tool implements the configuration functions customized by MCAL.

Deliverables:

1. ZC.MuNiu Configuration Tool

2. CAN module

3. SPI module

4. GPT module

5. DIO module

6. PORT模块 PORT Module

7. Ethernet module

8. LIN module

9. WDOG module

10. PWM module

11. ADC module

12. MCU module

13. CDD module (optional)

14. user manual

ØDemo Engineering Configuration

This stage is based on the controller software and hardware interface documents provided by customers. ZC helps customers complete the MCAL Demo project configuration, and the configuration tool uses ZC.MuNiu configuration tool. The purpose of this stage is to familiarize customers with the MCAL configuration as soon as possible and debug the controller.

Deliverables:

1. Arxml file for the Demo project

2. user manual

ØCustomer Demand Engineering Services

This stage is based on customer requirements to complete the configuration of MCAL, and the configuration tool uses ZC.MuNiu configuration tool. From the A prototype stage of customer products to the full-function prototype stage, ZC will complete the MCAL configuration based on customer requirements. The purpose of this stage is to allow customers to complete the configuration development of MCAL as soon as possible after each hardware change.
