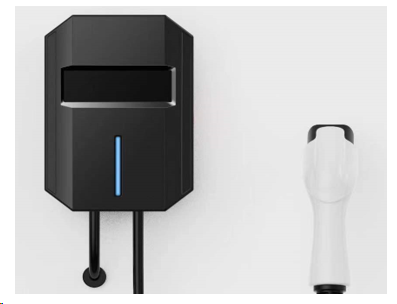

Product Introduction

This product meets the GBT18487-2015, Pattern III standards for wall-mounted/portable charging and is an AC charging pile designed for home use and community operation scenarios. It is equipped with Bluetooth mobile control, card swiping for identity recognition, energy metering, and HMI (Human-Machine Interface) for user interaction. The product design is highly simplified and lightweight, with the capability to be installed either wall-mounted or freestanding. It also features a protection level of IP65 and standby power consumption of less than 1W.

Main Features

Ø User-Friendly Interaction: Equipped with a 3.5-inch display screen that shows real-time charging status, charging current, amount of electricity charged, operating temperature, etc. A three-color bar indicator light shows the working status!

Ø Safe and Reliable: Built-in overvoltage, overcurrent, leakage detection, and ground wire detection functions ensure personal safety, with an IP65 protection rating for worry-free outdoor use.

Ø I ntelligent Design: Features Bluetooth communication capabilities, allowing for scheduling and power settings through a mobile phone.

Ø Available in 7KW, 11KW, and 22KW power models to meet the needs of different vehicle types and user requirements.

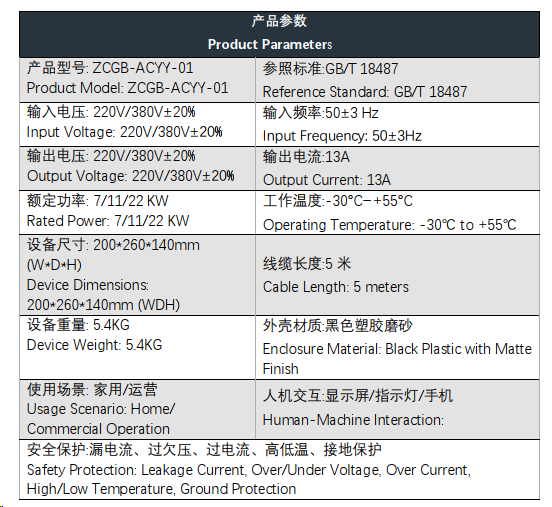

Product Parameters

Company Introduction

Shanghai ZC Technology Co., Ltd. is located by the Dishui Lake in the Lingang New Area of China (Shanghai) Pilot Free Trade Zone. It is a professional automotive software company engaged in the research and development of automotive electronic control products and technical services. As a national high-tech enterprise and one of the 24 key new energy vehicle internet of vehicles (IoV) enterprises in Lingang, it boasts a team with 90% of its members being R&D personnel, who have an average industry experience of over 10 years. The company has been committed to the development and service of controllers for the three electric systems of new energy vehicles, IoV controllers, and AUTOSAR basic software products. It also focuses on the development and service of functional safety and cybersecurity products. Under the trend of electrification, connectivity, intelligence, and software-defined characteristics in the automotive industry, the company provides high-quality, efficient, and cost-effective solutions for the sector.

Click to download the product manual
