ZC HIL Testing Engineering Service
Product Description
Based on the ASPICE process & functional safety process, ZC provides you with HIL test services, including HIL test implementation, bench & model building, and automated test tools.
Introduction

With the development of the automotive industry, the complexity of automotive electronic product design, especially software development, has also increased significantly. Correspondingly, the testing requirements at the software level and system level are becoming higher and higher, especially for automated testing solutions.

Based on the ASPICE process & functional safety process, ZC provides you with HIL test services, including HIL test implementation, bench & model building, and automated test tools.

Function Summary

HIL TESTS

        For HIL testing, ZC provides comprehensive and complete test service solutions based on different customer requirements, including HIL testing, bench building and providing automated test tools.

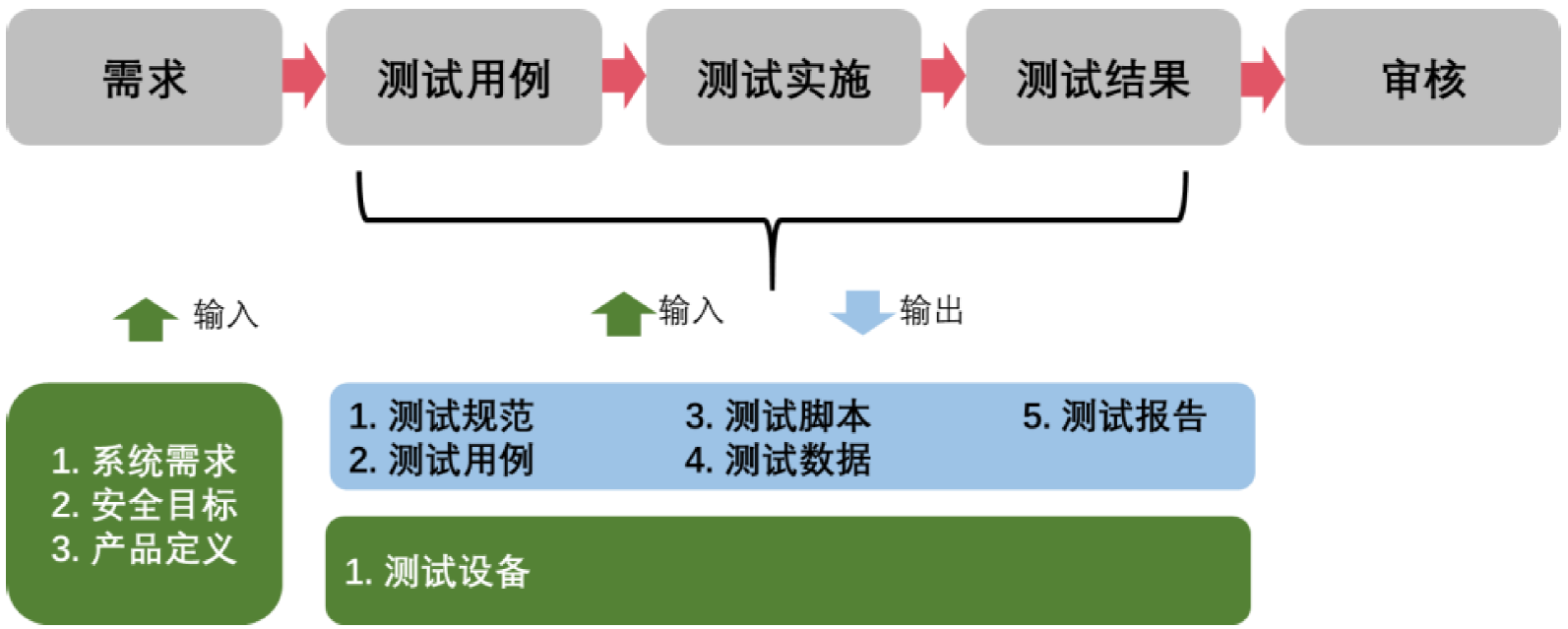

    image.png The HIL(Hardware In Loop) testing process is as follows. Customers need to input system requirements and product definitions. If there are functional safety requirements, they need to input additional safety goals and safety requirements. ZC will generate test specifications & test cases based on requirements, implement the test on the customer's equipment, record the results and form a report, and deliver the scripts developed during the test.



2 BENCH & MODEL BUILDING

    image.png ZC supports the construction of HIL test benches, including the configuration and connection of bench hardware equipment, as well as the construction of simulation physical models to meet the requirements of open-loop and closed-loop testing.

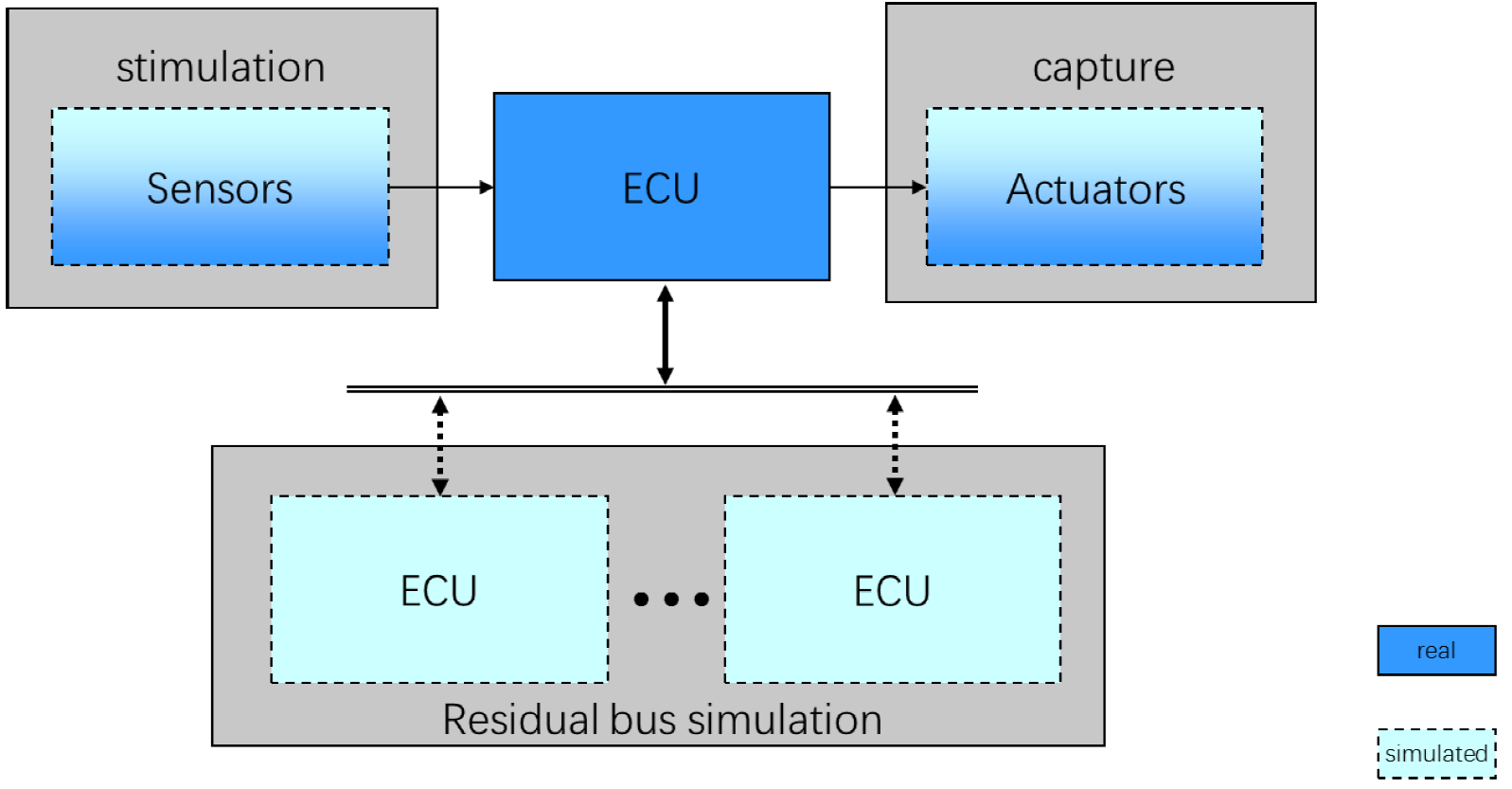

    image.png Functional Test-Open Loop


    image.png Functional Test-Closed Loop


AUTOMATION TOOLS

        ZC can provide customers with customized and developed automated testing tools. Automated testing tools can automate the execution, recording, and report generation of the test process.

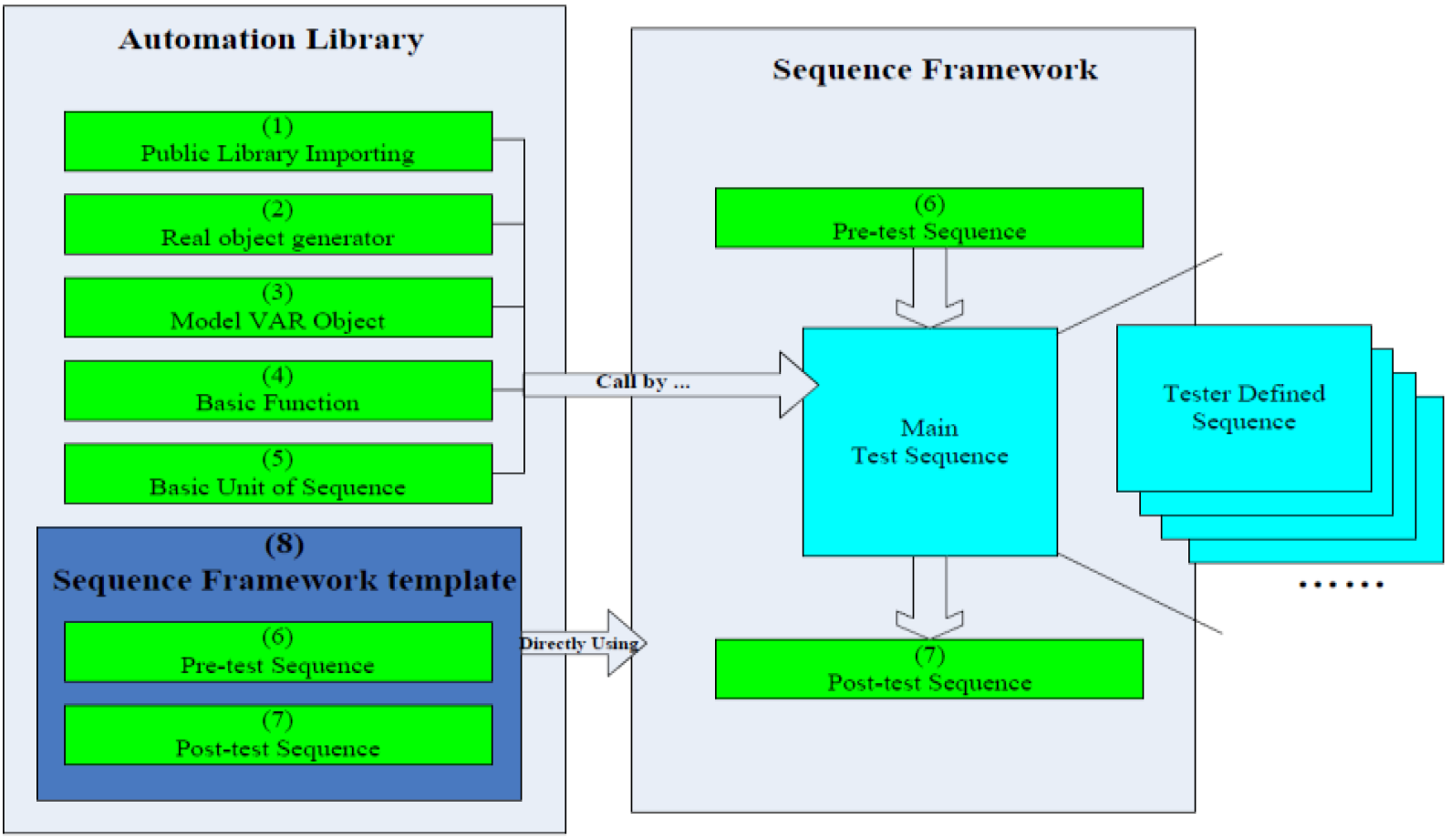

    image.png TA Software Architecture


    image.png Test script generation

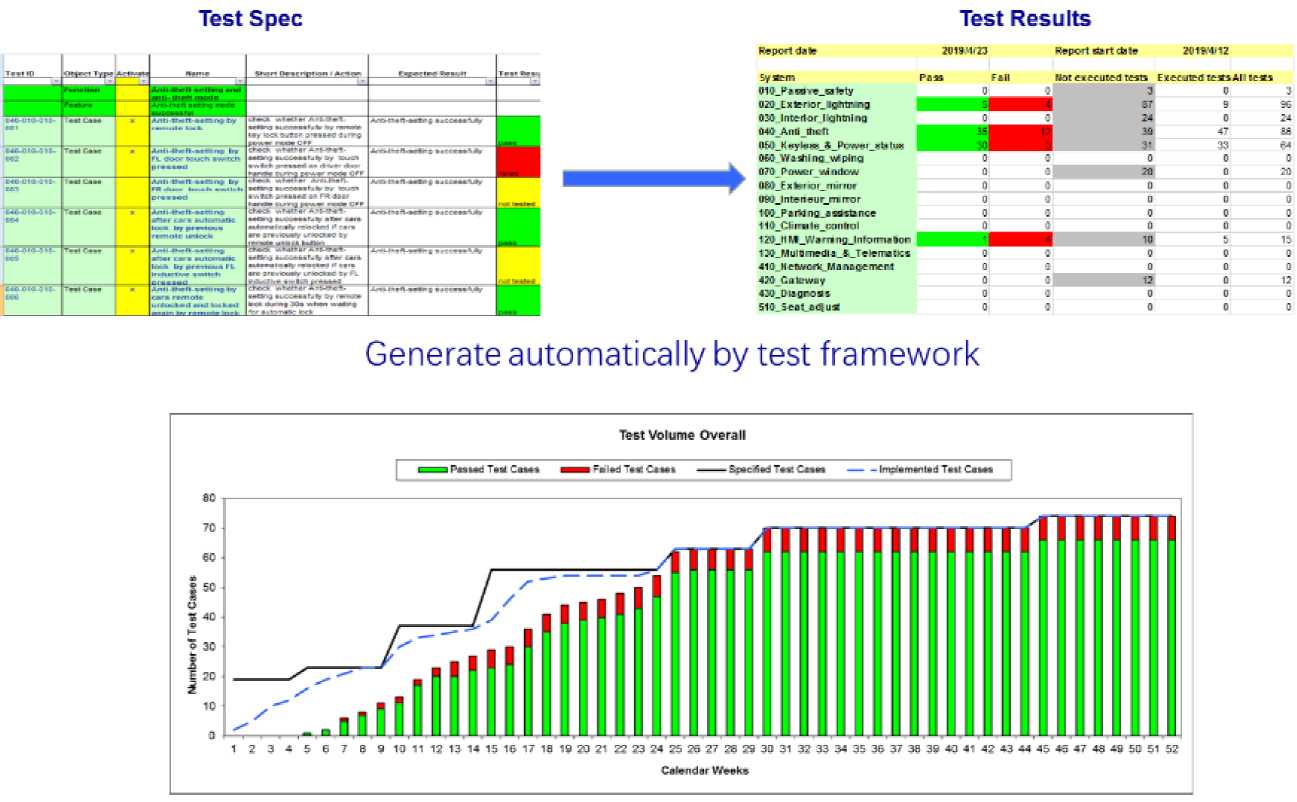

    image.png Test report generation





Download
Product Manual

Click to download the product manual
