ZC.MuNiu OS Product Manual Based on ARM CORTEX R52+

Introduction

ZC.MuNiu Operating System ARM CORTEX R52+ product complies with AUTOSAR and OSEK (ISO17356-3) standards, supporting multi-cluster and multi-core architectures. ZC.MuNiu Operating System ARM CORTEX R52+ product implements task preemptive scheduling, and efficient interrupt processing framework, providing good assurance for system real-time performance. ZC.MuNiu Operating System ARM CORTEX R52+ product includes configuration tool that can achieve flexible configuration and tailoring, can automatically generate configuration source code and application reference frameworks. It can significantly reduce the development costs of automotive electronic control units.

The ARM CORTEX R52+ architecture supports the configuration of multiple clusters, with each cluster containing multiple physical cores. ZC.MuNiu Operating System ARM CORTEX R52+ product supports multi-cluster and multi-core architectures and has excellent hardware adaptability. ZC.MuNiu Operating System ARM CORTEX R52+ product supports the ARM GIC V3.0 interrupt architecture, implementing static configuration of interrupt parameters, interrupt installation, and interrupt routing mechanisms in non-virtual machine modes, effectively ensuring system real-time performance. By the characteristics of the ARM CORTEX R52+ architecture, key algorithms such as task scheduling and inter-core communication are optimized to improve system performance.

ZC.MuNiu Operating System ARM CORTEX R52+ product has an lightweight memory protection and timing protection framework, which can effectively prevent low-safety-level applications from accessing illegal memory areas and prevent unexpected timing behavior in low-safety-level applications. Thereby achieving fault isolation and enabling the coexistence of multiple functional safety level applications in the system. The service protection mechanism determines whether the application's call complies with the rules defined in the standard, preventing unexpected behavior caused by non-standard implementation. The stack protection mechanism provides real-time monitoring of the stack usage of tasks and interrupts, preventing stack overflow in tasks or interrupts, and further improving system safety.

ZC.MuNiu Operating System ARM CORTEX R52+ product can be deeply customized and optimized for microcontrollers (MCU) in the automotive field, as well as for the safety islands integrated in controllers. ZC.MuNiu Operating System (OS) product has characteristics of execution efficiency and flexible code deployment.

ZC actively invests in the adaptation of domestic chips, taking the lead in adapting to the products of domestic chip manufacturers such as Flagchip and AutoChips Inc. ZC will continuously improving the compatibility and support of ZC.MuNiu basic software for domestic chips.

ZC has the core technology of the AUTOSAR basic software. Can provide on-site support with high quality, fast speed, and low cost.

Detailed Introduction

FUNCTIONAL DESCRIPTION

Product Feature

Ø ARTOP architecture upper computer configuration tool, compliant with AUTOSAR 4.2.2/4.3.1/4.4.0

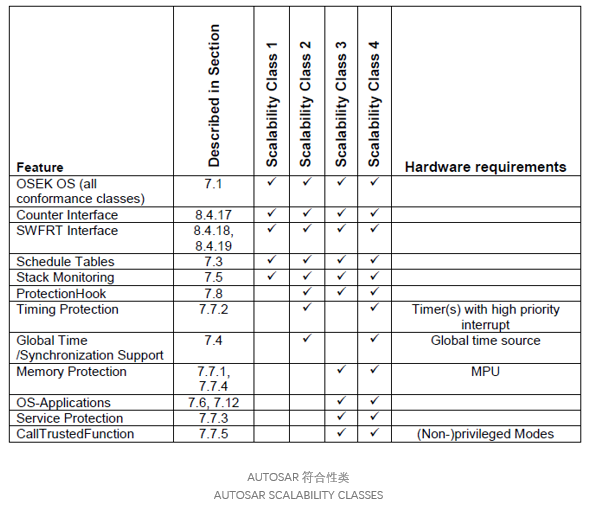

Ø Supports AUTOSAR scalability classes SC1, SC2, SC3, and SC4

Ø Efficient interrupt processing framework, supporting ARM GIC V3.0 version

Ø Supports multi-cluster and multi-core architecture

Ø Lightweight memory protection and timing protection framework

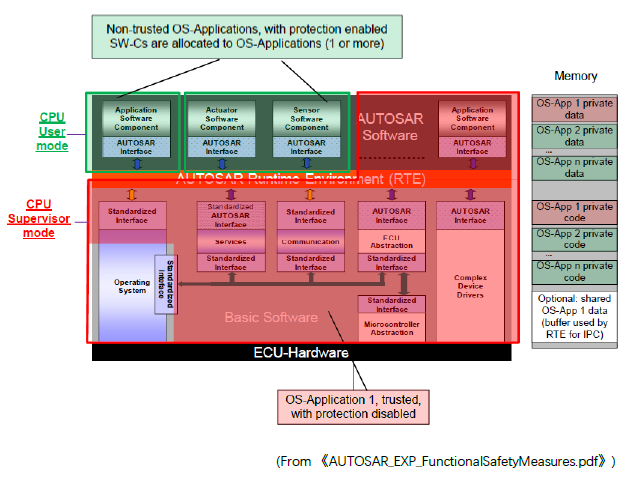

Ø Comprehensive protection capabilities for untrusted Os-Applications

Ø Optional protection capabilities for trusted Os-Applications

Ø Customized services

Configuration Tool

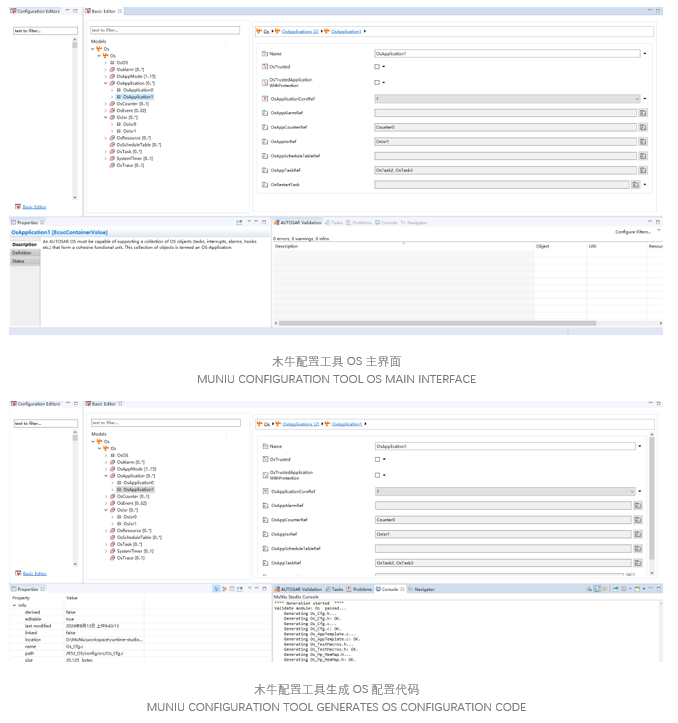

To meet the requirements of customer and enhance the extensibility of the basic software platform, ZC.MuNiu has implemented configurable modules and configuration tool. Customers can use the configuration tool to configthe modules according to their specific needs, generate configuration code files, and integrate these files into projects.

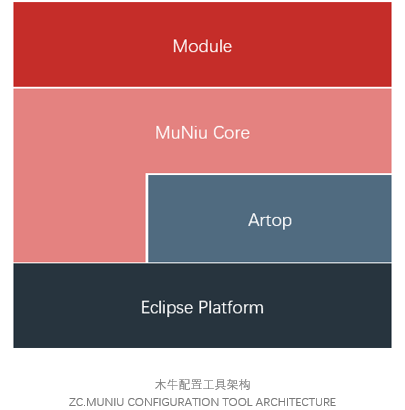

The configuration tool for ZC.MuNiu Operating System product is based on the Eclipse platform and is based on the ARTOP architecture, implementing the parsing of AUTOSAR models and ARXML. ZC.MuNiu Core completes the UI interface of the configuration tool, and the Module above ZC.MuNiu Core implements the configuration of various AUTOSAR modules. After the configuration is completed, the configuration code for each module can be generated.

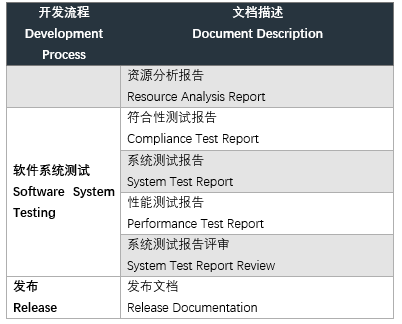

PROCESS DOCUMENTATION

Function Summary

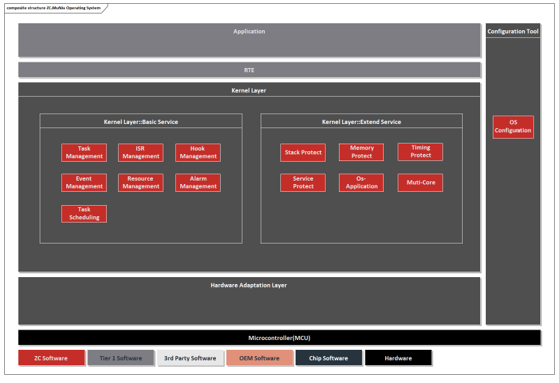

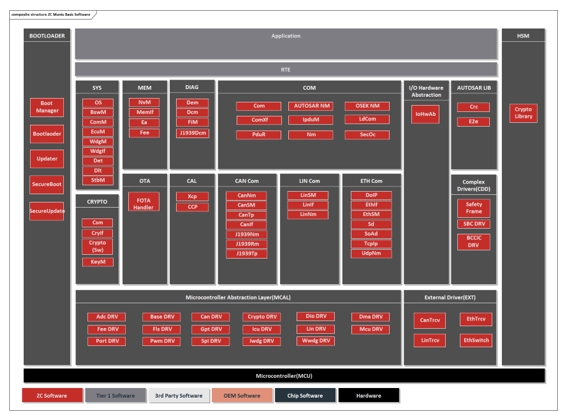

ZC.MuNiu provides a comprehensive basic software platform solution for the development of automotive electronic control units. This product refers to international standards such as AUTOSAR and OSEK, and has configuration tool based on the AUTOSAR ARTOParchitecture. ZC.MuNiu Operating System (OS) product is a embedded real-time operating system (RTOS) suitable for automotive electronic control units. It conforms to the full set of functionalities required by the Scalability Classes (SC) defined in the AUTOSAR specifications, and includes functional safety features such as memory protection, timing protection, service protection, and stack protection as defined in the SC4 functionality set. ZC.MuNiu Operating System (OS) can also support the coexistence of applications with different ASIL levels, with the highest support for ASIL-D level applications.
