ZC.MuNiu provides a comprehensive basic software platform solution for the development of automotive electronic control units. This product refers to international standards such as AUTOSAR and OSEK, and has a configuration tool based on the AUTOSAR ATOP architecture that supports communication, diagnostics, and network management specifications for major OEMs like SAIC Motor, FAW, Geely, GAC Group, Changan Automobile, and Great Wall Motors.

ZC.MuNiu basic software platform mainly includes: operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., along with ZC’s bootloader update program and configuration tool, which can be configured and redeveloped according to different customer project requirements. While providing basic software products, ZC also offers development services for the implementation of controller basic software functions.

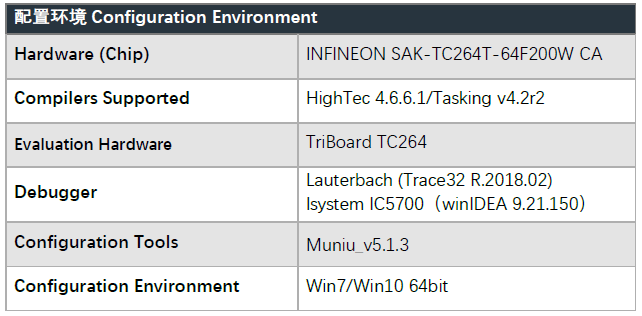

ZC.MuNiu basic software platform can be applied to the development of automotive electronic control unit products using the TC264 series chips of Infineon. For example:

Ø  New Energy Vehicle Controller

Ø  Motor Controller

Ø  Battery Management System Controller

Ø  DC/DC Converter Controller

Ø  Electric Power Steering Controller

Ø  Body Controller

Ø  Air Conditioning Controller

The OSEK standard aims to establish standardized interfaces for automotive electronics, primarily defining three components: the real-time operating system (OSEKOS), the communication system (OSEKCOM), and the network management system (OSEKNM). The OSEK operating system, which originated in the 1990s, was the first commercial automotive embedded operating system.

The AUTOSAR organization was established in 2003, primarily by European automakers, component suppliers, and other companies in the electronics, semiconductor, and software systems industries. It is committed to developing an open and standardized software architecture for the automotive industry, with the motto “Cooperate on standards and compete on implementation,” which aims to enhance the stability of the basic platform, reduce costs, and improve the quality and speed of controller product development. The organization released version 2.1 of the standard at the end of 2006 and version 3.1 in 2008, which began to be commercialized. Subsequent versions gradually added content related to functional safety and Ethernet. Currently, versions 4.2.1 and 4.2.2, released after 2014, as well as version 4.3.1, are widely used.

Under the major trends of electrification, connectivity, and intelligence in the automotive industry, the number of electronic and electrical components is increasing, and the electrical structure is becoming more complex, while the vehicle development cycle continues to shorten. Platform-based and intelligent basic software plays a crucial role in this context.

ZC.MuNiu basic software platform mainly includes: operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., along with ZC’s bootloader update program and configuration tool, which can be configured and further developed according to different customer project requirements.

In addition to providing basic software products, ZC offers development services for the implementation of controller basic software functions that comply with ASPICE Level 3 processes and meet the functional safety requirements of ASIL B and D. The company also provides customized development of complex driver software for various chips, such as SBC and BCCIC. Moreover, by integrating ZC's functional safety product SafetyFrame, the requirements for functional safety can be satisfied.

ZC has mastered the core technologies for the development and application of AUTOSAR platform software and provides local on-site support with high quality, fast speed, and low cost.

Ø  Compliant with AUTOSAR 4.3.1 version

Ø  ARTOP architecture upper machine configuration tool, compatible up to AUTOSAR 4.4.0 version

Ø  Compliant with the OSEK standard

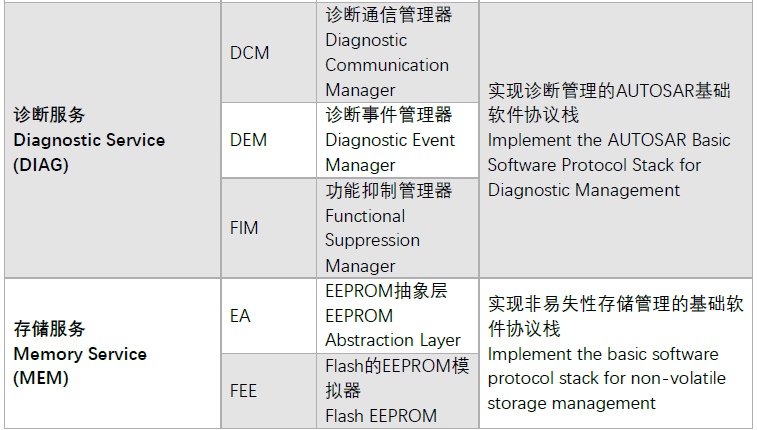

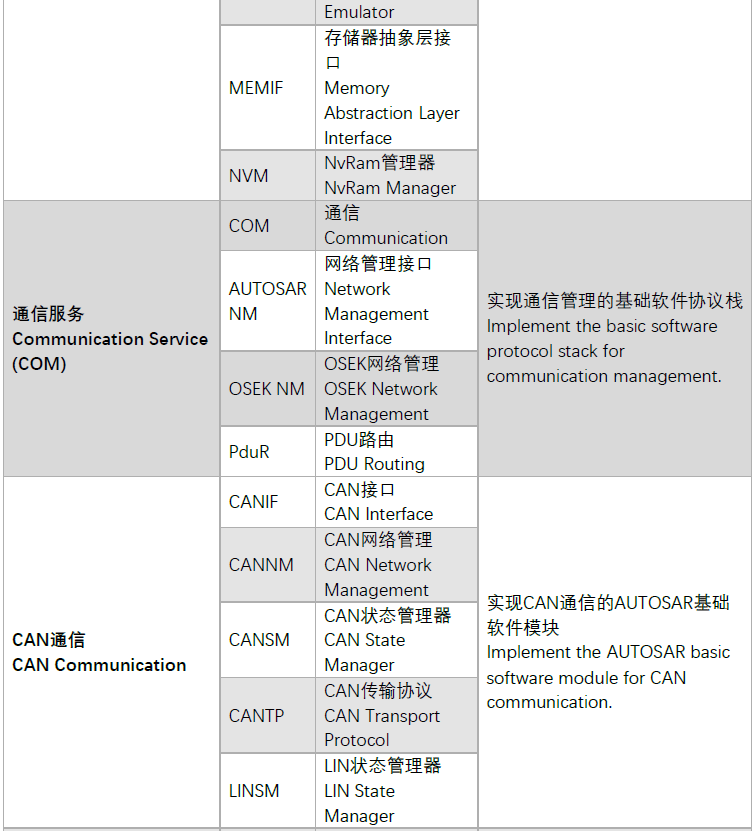

Ø  Operating System

Ø  Communication Protocol Stack（CAN\LIN）

Ø  Diagnostic Protocol Stack (UDS\J1939)

Ø  Network Management (OSEK\AUTOSAR）

Ø  Calibration Protocol Stack（XCP\CCP）

Ø  Storage Protocol Stack

Ø  Cryptography Module（CRYPTO）

Ø  Custom Development of Complex Drivers

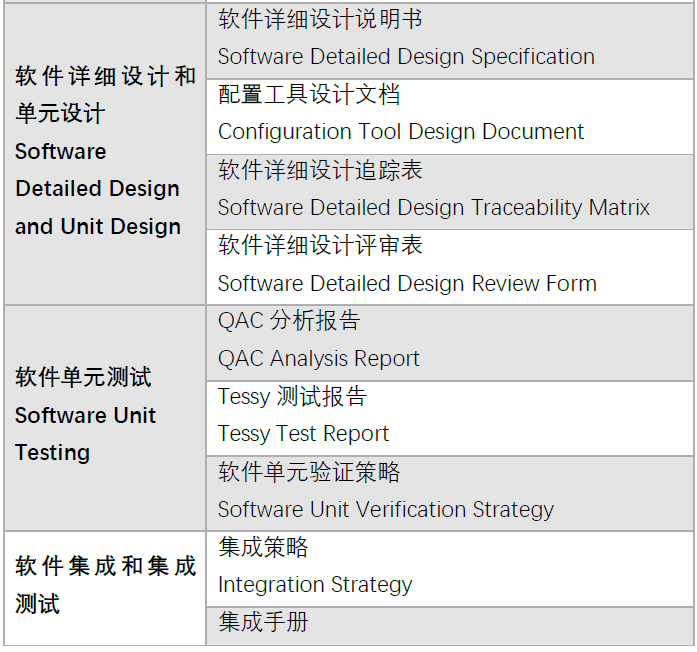

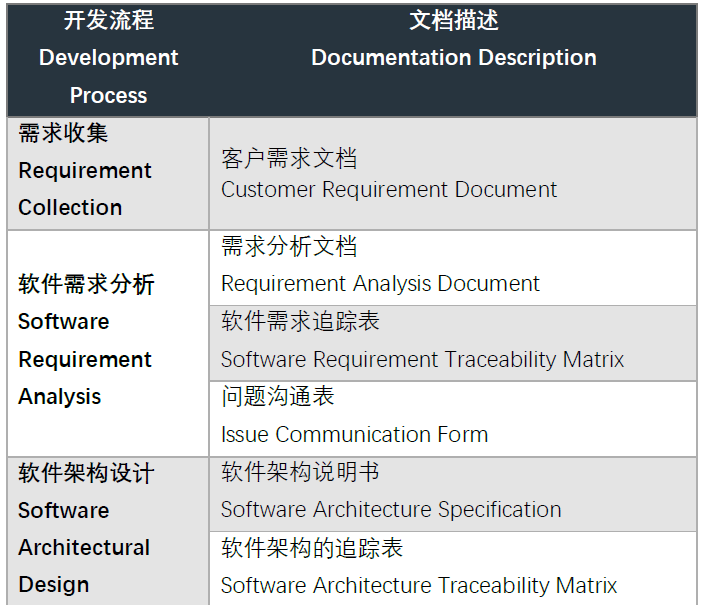

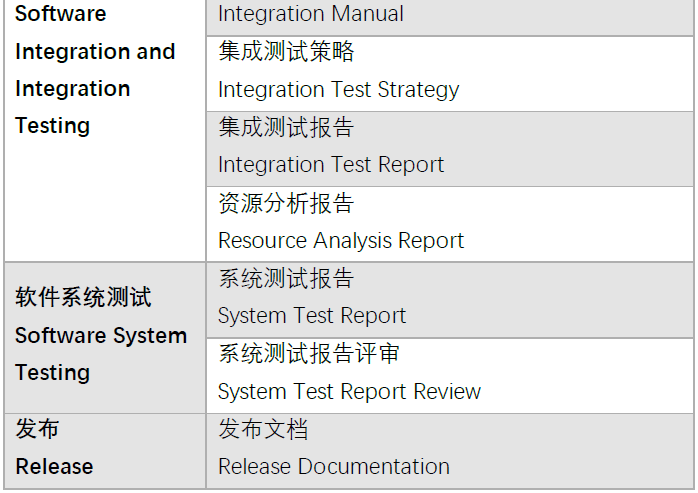

Ø  Engineering Services

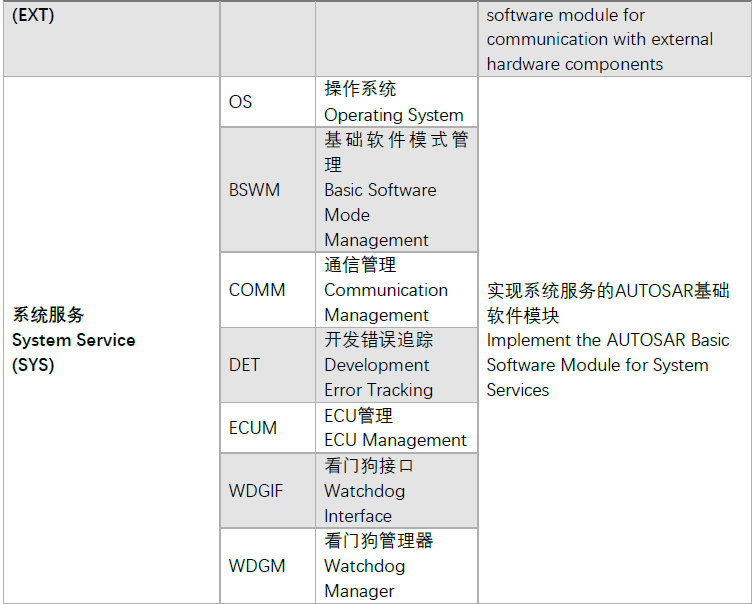

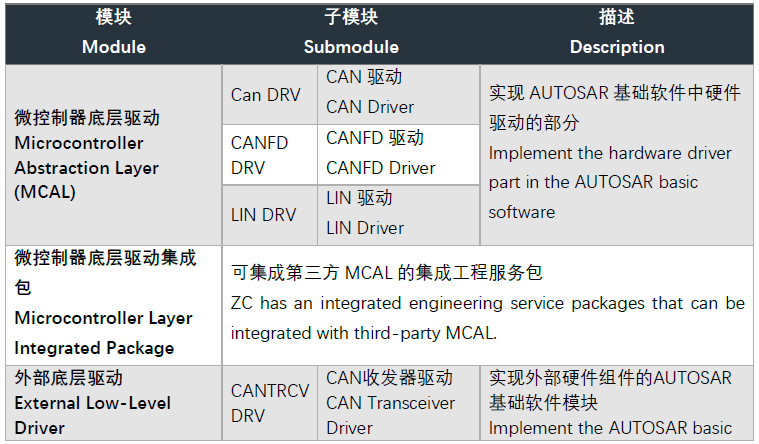

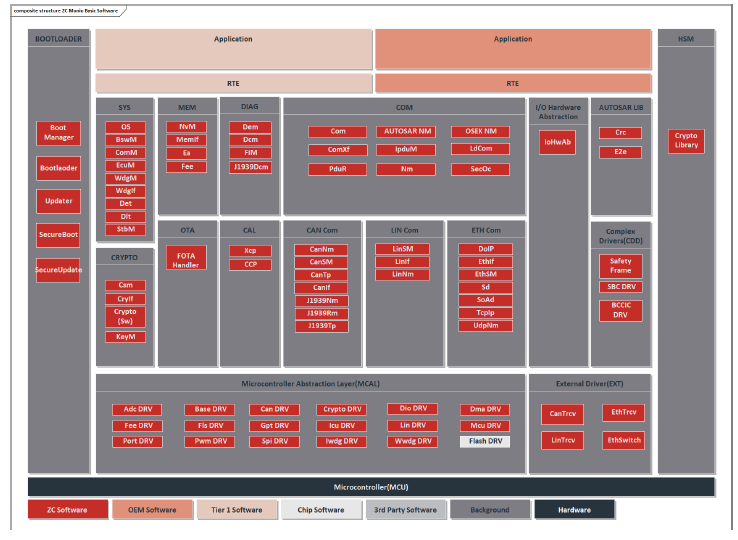

ZC.MuNiu Basic Software Architecture

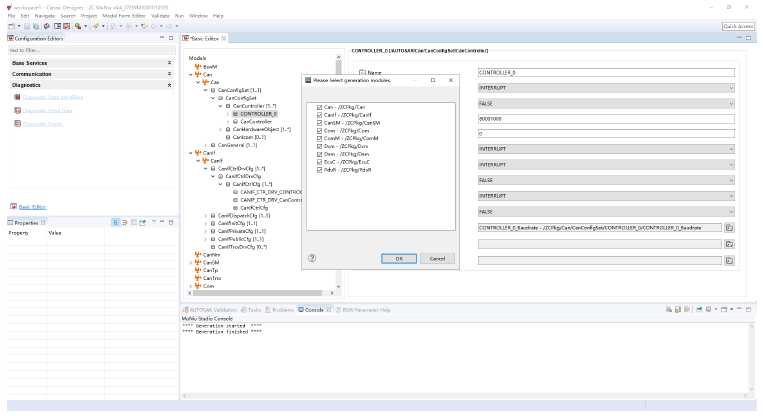

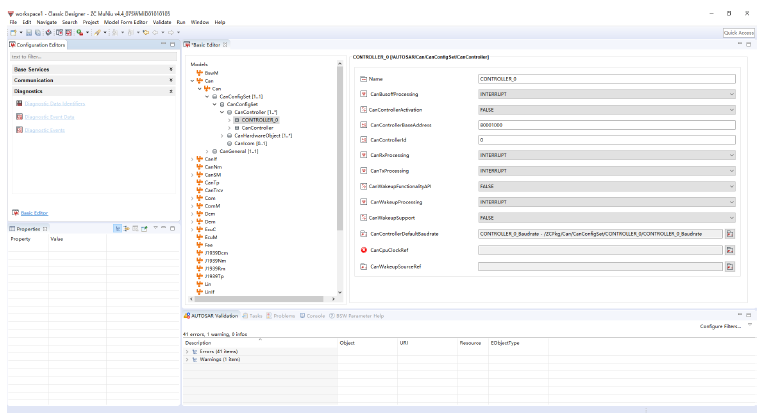

MUNIU CONFIGURATION TOOL MAIN INTERFACE

MUNIU CONFIGURATION TOOL GENERATES CONFIGURATION CODE

To meet the diverse project requirements of customers and enhance the scalability of the basic software platform, the MuNiu basic software platform has implemented the configurability of each module and has also developed a configuration tool. Customers can complete the configuration of each module according to different requirements on the configuration tool, generate configuration code files, and integrate the generated configuration files into the project.

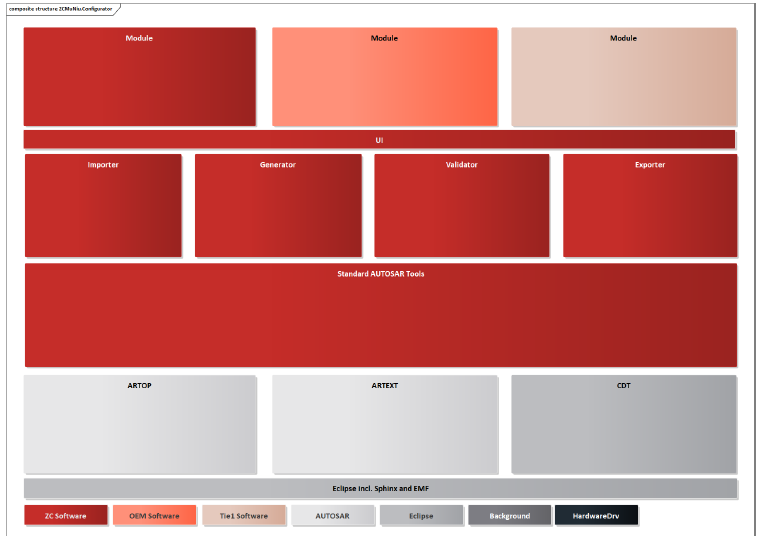

ZC.MUNIU CONFIGURATION TOOL ARCHITECTURE

ZC.MuNiu basic software platform configuration tool is based on the Eclipse platform and is built on the ARTOP architecture, which implements the parsing of the AUTOSAR model and ARXML. ZC.MuNiu Core completes the UI interface of the configuration tool, and the Module on top of ZC.MuNiu Core realizes the configuration of each AUTOSAR module. After the configuration is completed, the configuration code for each module can be generated.

MUNIU SOFTWARE COPYRIGHT REGISTRATION CERTIFICATE
