The OSEK standard aims to establish standardized interfaces for automotive electronics, primarily defining three components: the real-time operating system (OSEKOS), the communication system (OSEKCOM), and the network management system (OSEKNM). The OSEK operating system, which began in the 1990s, was the first commercialized automotive embedded operating system.

The AUTOSAR consortium was established in 2003, mainly by European car manufacturers, component suppliers, and other electronics, semiconductor, and software system companies. It is dedicated to developing an open, standardized software architecture for the automotive industry; the goal is for everyone to "cooperate on standards and compete on applications," improving the stability of the basic platform, reducing costs, and enhancing the quality and speed of control unit product development. The 2.1 version of the specification was released at the end of 2006, and the 3.1 version was productized in 2008; subsequently, functionalities such as functional safety and Ethernet were gradually added. The widely used versions are the 4.2.1 and 4.2.2 versions, released after 2014, as well as version 4.3.1.

In the major trend of electrification, networking, and intelligence of automobiles, the number of electronic and electrical components is increasing, the electrical structure is becoming more complex, and the vehicle development cycle is continuously shortening. Platform-based and intelligent foundational software plays a crucial role.

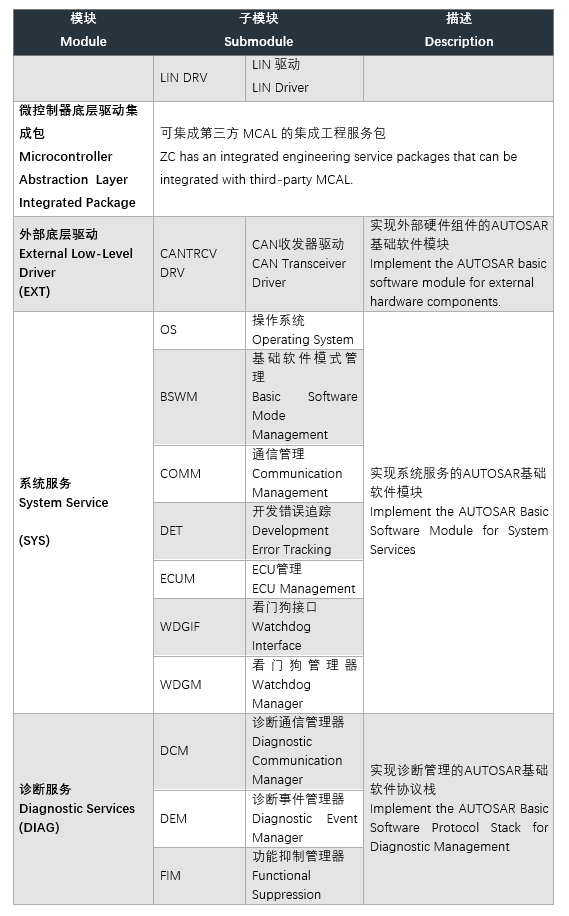

ZC.MuNiu provides a complete basic software platform solution for the development of automotive electronic control unit products. This product complies with international standards such as AUTOSAR and OSEK, and features an upper computer configuration tool based on the AUTOSAR ATOP architecture, supporting communication, diagnostics, and network management standards of major vehicle manufacturers like SAIC Motor,  FAW, Geely, GAC Group, Changan Automobile, and Great Wall Motors. The platform mainly includes: operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., with Bootloader update programs and upper computer tools from ZC, which can be configured and redeveloped according to different customer project requirements.

While providing basic software products, ZC also offers development services for the implementation of control unit basic software functions that comply with the ASPICE Level 3 process and functional safety requirements ASIL B/D, as well as customized development of various complex driver software for SBC and BCCIC chips. At the same time, by integrating ZC's functional safety product SafetyFrame, functional safety requirements can be met.

ZC has mastered the core technology of AUTOSAR platform software development and application, providing on-site local support, with high quality, fast speed, and low cost.

Product Feature

ØCompliant with AUTOSAR 4.3.1 version

ØARTOP architecture upper machine configuration tool, compatible up to AUTOSAR 4.4.0 version

ØOperating System

ØCommunication Protocol Stack（CAN\LIN）

ØDiagnostic Protocol Stack (UDS\J1939)

ØNetwork Management (OSEK\AUTOSAR）

ØCalibration Protocol Stack（XCP\CCP）

ØStorage Protocol Stack

ØCryptography Module（CRYPTO）

ØCustom Development of Complex Drivers

ØEngineering Services

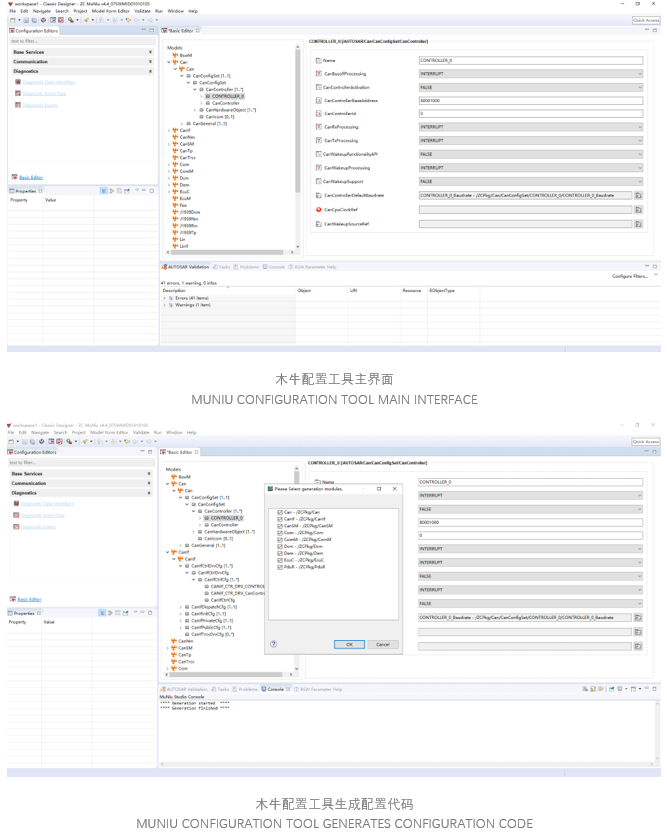

Configuration Tool

To meet the diverse project requirements of customers and enhance the scalability of the basic software platform, the MuNiu basic software platform has implemented the configurability of each module and has also developed a configuration tool. Customers can complete the configuration of each module according to different needs on the configuration tool, generate configuration code files, and integrate the generated configuration files into the project.

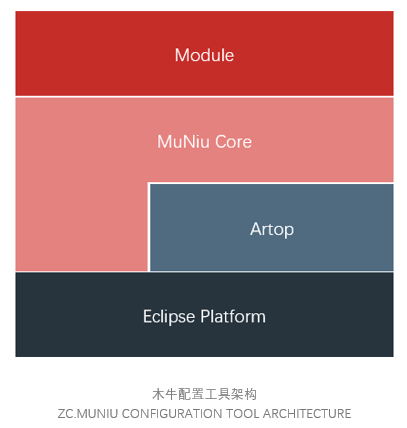

ZC.MuNiu basic software platform configuration tool is based on the Eclipse platform and is built on the ARTOP architecture, which implements the parsing of the AUTOSAR model and ARXML. ZC.MuNiu Core completes the UI interface of the configuration tool, and the Module on top of ZC.MuNiu Core realizes the configuration of each AUTOSAR module. After the configuration is completed, the configuration code for each module can be generated.

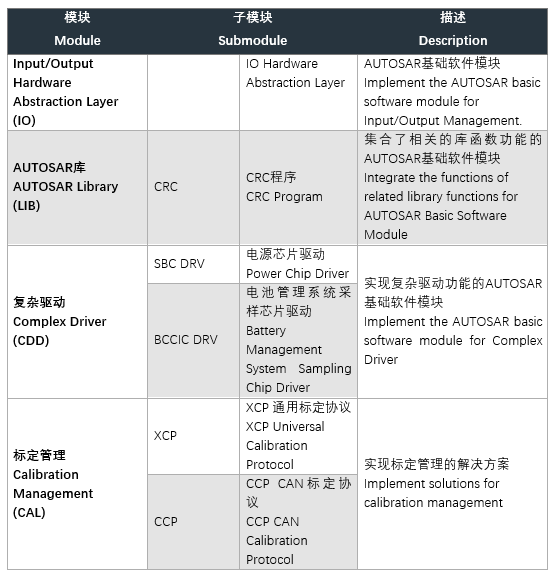

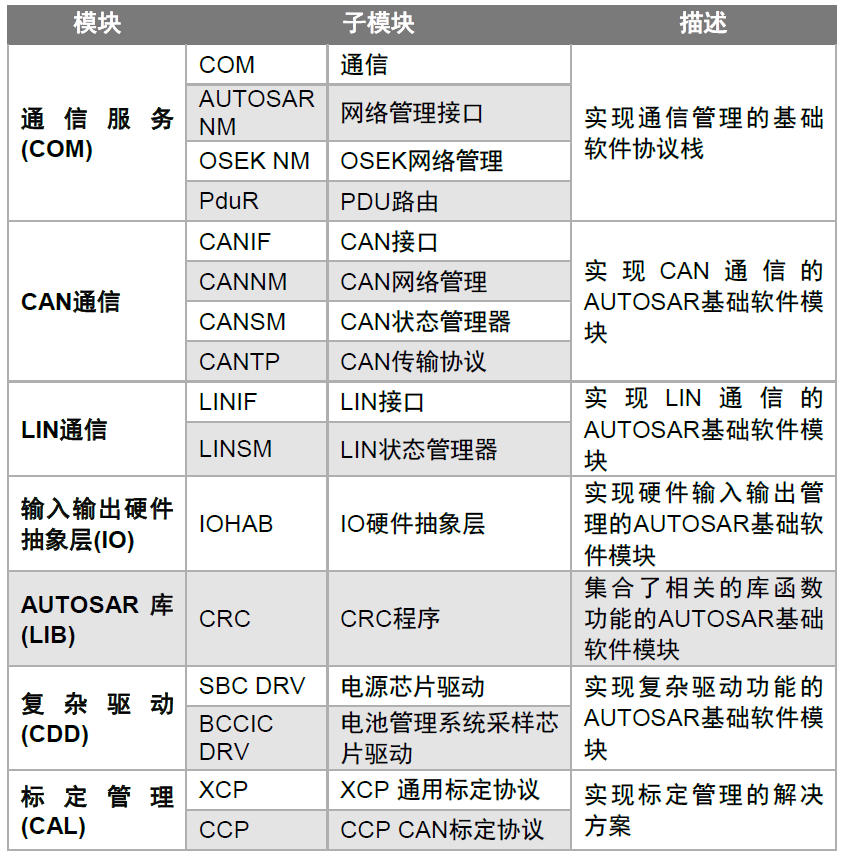

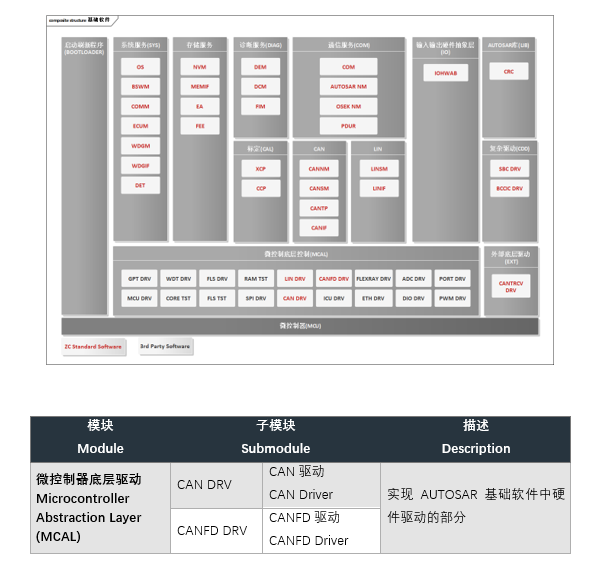

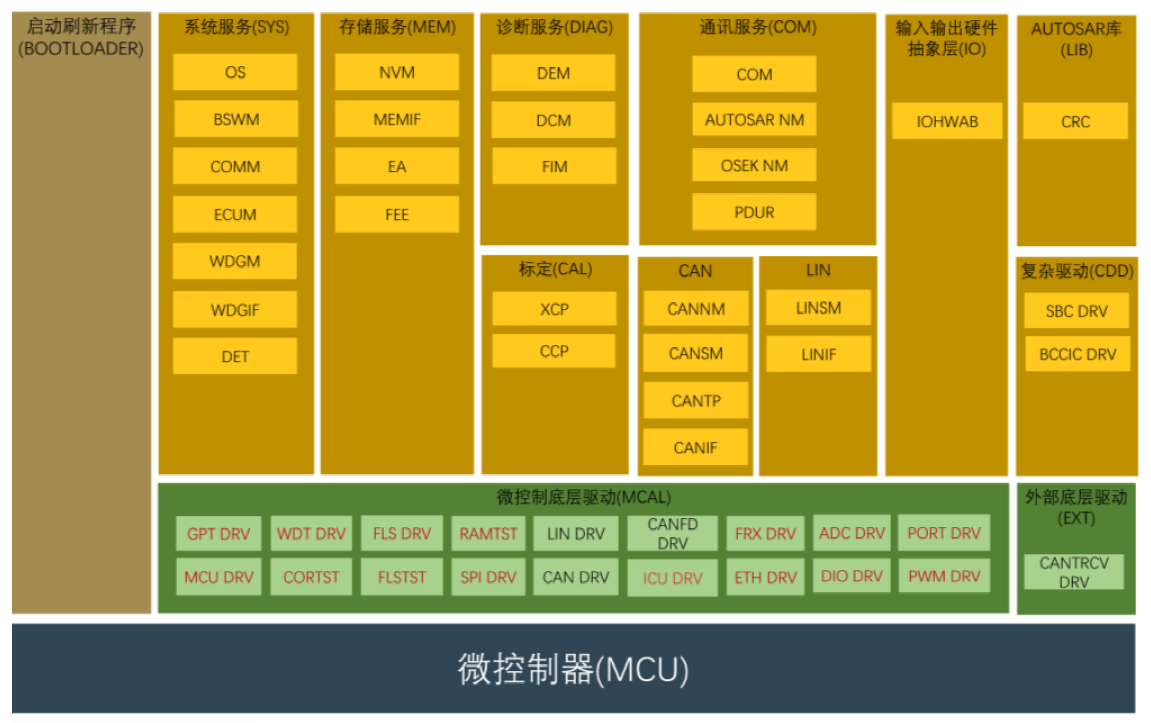

ZC.MuNiu provides a comprehensive basic software platform solution for the development of automotive electronic control units. This product refers to international standards such as AUTOSAR and OSEK, and has a configuration tool based on the AUTOSAR ATOP architecture that supports communication, diagnostics, and network management specifications for major OEMs like SAIC Motor, FAW, Geely, GAC Group, Changan Automobile, and Great Wall Motors.  The platform mainly includes: operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., along with ZC's bootloader update program and configuration tool, which can be configured and redeveloped according to different customer project requirements. While providing basic software products, ZC also offers development services for the implementation of controller basic software functions.

ZC.MuNiu Basic Software Platform can be applied to the development of automotive electronic control unit (ECU) products. Any automotive controller with basic software requirements can utilize the platform.

 For example:

Ø  New Energy Vehicle Controller (VCU)

Ø  Motor Controller (MCU)

Ø  Battery Management System Controller (BMS)

Ø  DC/DC Converter Controller

Ø  Electric Power Steering Controller (EPS)

Ø  Body Control Module (BCM)

Ø  Air Conditioning Controller

Ø  Advanced Driver Assistance System Controller (ADAS)

Ø  Intelligent Gateway Controller (Gateway)

Ø  Intelligent Braking System (iBooster)

Ø  Electronic Stability Control (ESC/Onebox)

Ø  Electronic Parking Brake System (EPB)

Ø  Engine Management System (EMS)

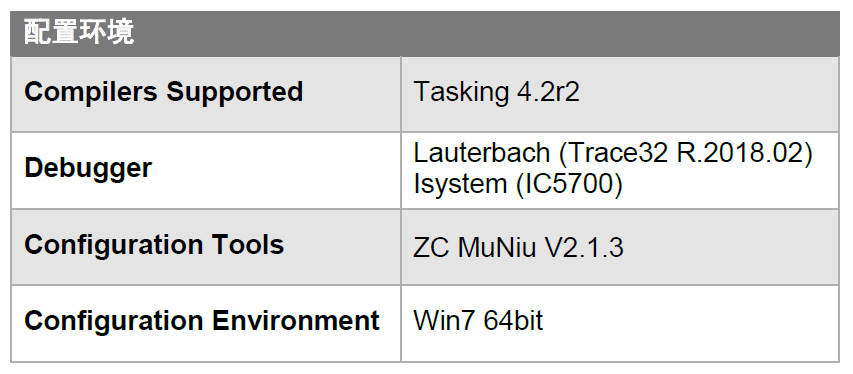

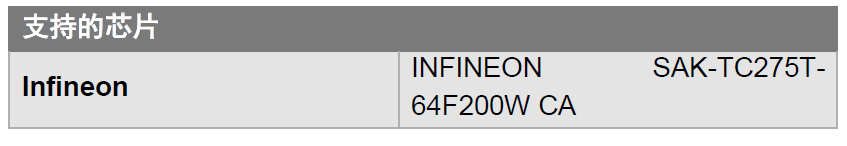

The chips supported by ZC.MuNiu Basic Software and the corresponding compiler environments are as follows:

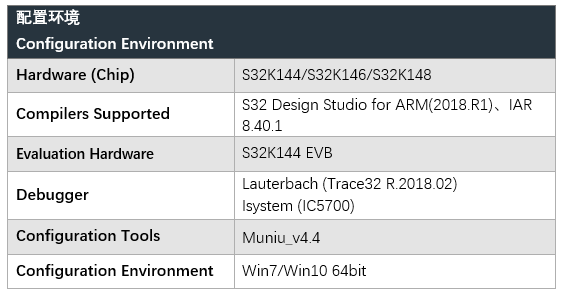

i.          Software configuration for NXP S32K series chip of ZC.MuNiu Basic Software product:

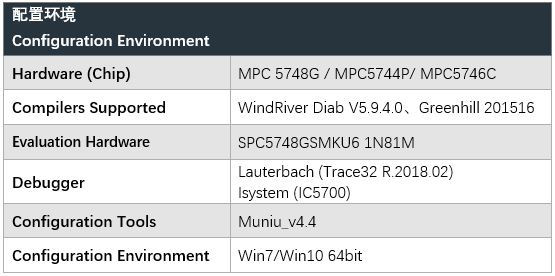

ii.          Software configuration for NXP PowerPC series chip of ZC.MuNiu Basic Software product:

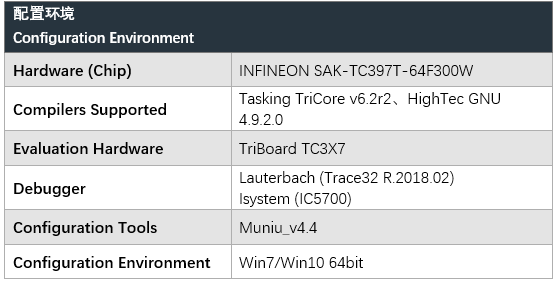

iii.          Software configuration for Infineon AURIX 2G TC3xx of ZC.MuNiu Basic Software product:

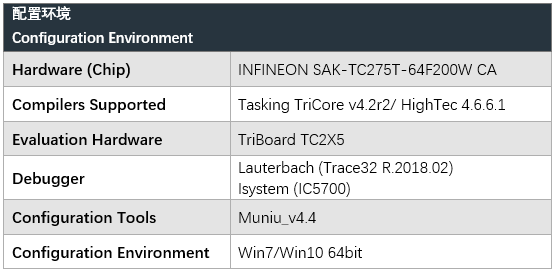

iv.          Software configuration for Infineon AURIX 1G TC2xx of ZC.MuNiu Basic Software product:

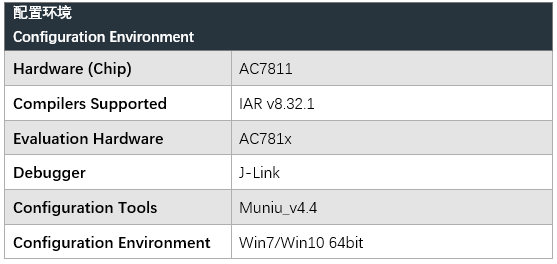

v.          Software configuration for AutoChips AC781x of ZC.MuNiu Basic Software product:

MUNIU SOFTWARE COPYRIGHT REGISTRATION CERTIFICATE

Click to download the product manual
