The AUTOSAR organization was established in 2003, primarily by European car manufacturers, parts suppliers, and other electronic, semiconductor, and software system companies. It is dedicated to developing an open, standardized software architecture for the automotive industry; the goal is for everyone to "cooperate on standards and compete in applications," improving the stability of the basic platform, reducing costs, and enhancing the quality and speed of controller product development. The 2.1 version of the specification was released at the end of 2006, and the 3.1 version was released in 2008, marking the beginning of productization; subsequently, functionalities such as functional safety and Ethernet were gradually added. The widely used versions are the 4.2.1 and 4.2.2 released after 2014, as well as the 4.3.1 version.

With the trend of electrification, networking, and intelligence in the automotive industry, the number of electronic and electrical components is increasing, the electrical structure is becoming more complex, and the development cycle of the whole vehicle is continuously shortening. The platform-based, intelligent basic software plays a crucial role.

ZC.MuNiu provides a complete basic software platform solution for the development of automotive electronic control unit products. The product complies with international standards such as AUTOSAR and OSEK, and has an upper machine configuration tool based on the AUTOSAR ATOP architecture, supporting communication, diagnosis, and network management standards for major vehicle manufacturers such as SAIC, FAW, Geely, GAC, Changan, and Great Wall. The platform mainly includes: operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., along with ZC 's bootloader refresh program and upper machine tool, which can be configured and redeveloped according to different customer project requirements.

While providing basic software products, ZC also offers development services for the implementation of controller basic software functions that comply with the ASPICE Level 3 process and functional safety requirements of ASIL B/D. It also provides custom development of various complex driver software for SBC chips and BCCIC chips. At the same time, integrating ZC's functional safety product SafetyFrame can meet functional safety requirements.

ZC has mastered the core technology of development and application of AUTOSAR platform software, providing on-site local support, with high quality, fast speed, and low cost.

 Product Feature

Ø   Compliant with AUTOSAR 4.3.1 version

Ø   ARTOP architecture upper machine configuration tool, compatible up to AUTOSAR 4.4.0 version

Ø   Muti-Core Operating System

Ø   Communication Protocol Stack（CAN\LIN）

Ø   Diagnostic Protocol Stack (UDS\J1939)

Ø   Network Management (OSEK\AUTOSAR）

Ø   Calibration Protocol Stack（XCP\CCP）

Ø   Storage Protocol Stack

Ø   Cryptography Module（CRYPTO）

Ø   Custom Development of Complex Drivers

Ø   Engineering Services

Configuration Tool

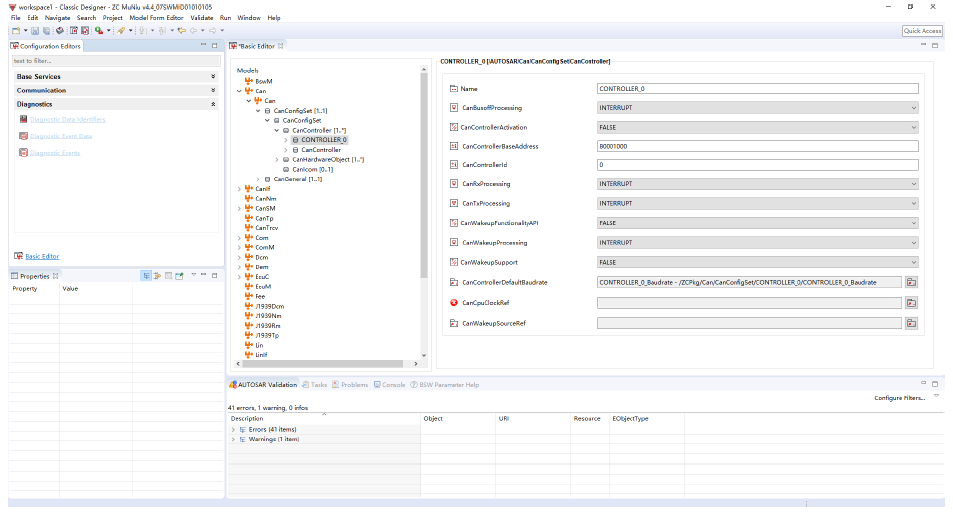

MUNIU CONFIGURATION TOOL MAIN INTERFACE

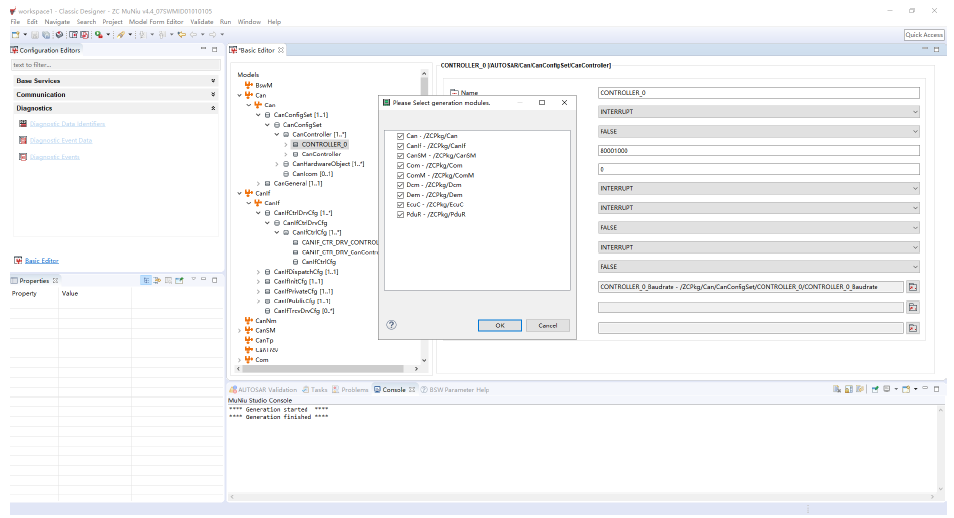

MUNIU CONFIGURATION TOOL GENERATES CONFIGURATION CODE

To meet the diverse project requirements of customers and enhance the scalability of the basic software platform, the MuNiu basic software platform has implemented the configurability of each module and has also developed a configuration tool. Customers can complete the configuration of each module according to different needs on the configuration tool, generate configuration code files, and integrate the generated configuration files into the project.

ZC.MUNIU CONFIGURATION TOOL ARCHITECTURE

ZC.MuNiu basic software platform configuration tool is based on the Eclipse platform and is built on the ARTOP architecture, which implements the parsing of the AUTOSAR model and ARXML. ZC.MuNiu Core completes the UI interface of the configuration tool, and the Module on top of ZC.MuNiu Core realizes the configuration of each AUTOSAR module. After the configuration is completed, the configuration code for each module can be generated.

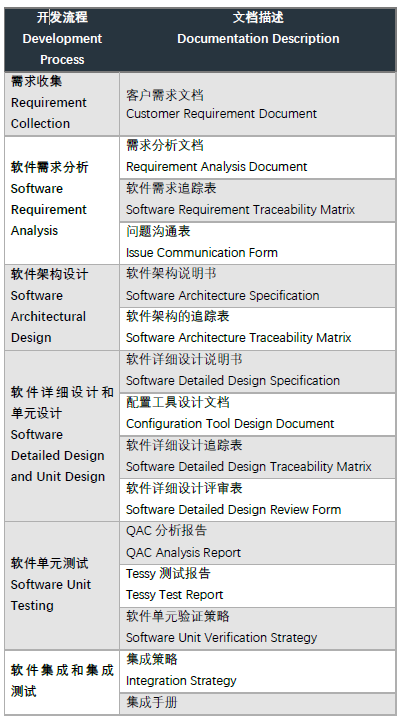

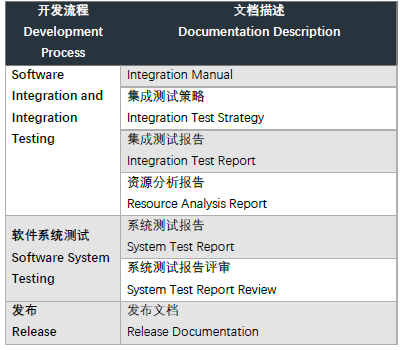

PROCESS DOCUMENTATION

ZC.MuNiu provides a comprehensive basic software platform solution for the development of automotive electronic control units. This product refers to international standards such as AUTOSAR and OSEK, and has a configuration tool based on the AUTOSAR ARTOParchitecture.  ZC.MuNiu supports communication, diagnostics, and network management specifications for major OEMs like SAIC, FAW, Geely, GAC, CCAG, and GWM.

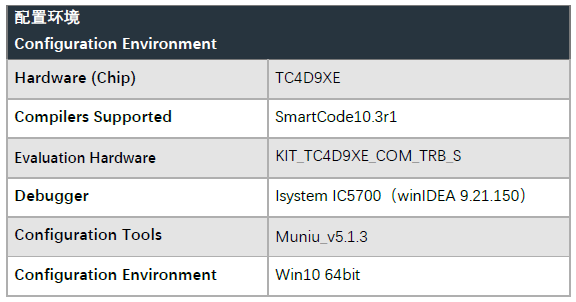

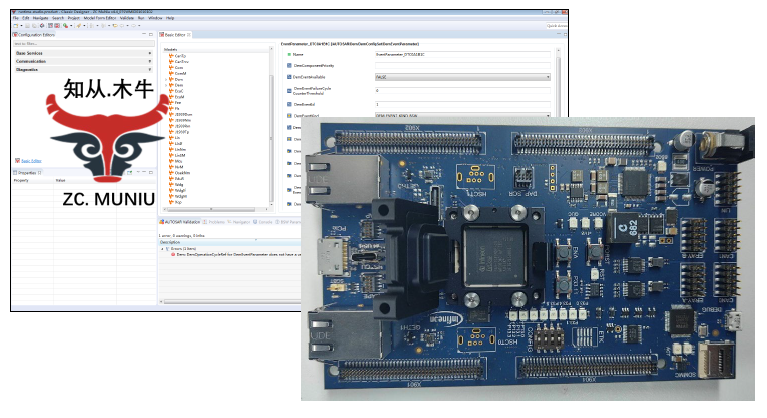

Infineon AURIX TC4x series microcontroller is based on the TriCore 1.8 core and designed for the next generation of ADAS, automotive E/E architecture, and increasingly complex automotive application software architecture. The Infineon AURIX TC4x series microcontrollers support high-speed communication interfaces (ETH Ethernet), providing customers with the performance, throughput, and flexibility required for new automotive E/E architectures. The Infineon AURIX TC4x series microcontroller complies with ISO 21434 information security standard, and can support ISO26262 standard ASIL-D functional safety level application.

Shanghai ZC is important global partner and PDH of Infineon, provides the basic software platform for AURIX TC4x series microcontroller. Mainly includes: muti-core operating system, communication protocol stack (CAN/LIN), diagnostic protocol stack (UDS/J1939), network management (OSEK/AUTOSAR), calibration protocol stack (XCP/CCP), storage protocol stack, complex driver modules, etc., along with ZC's bootloader refresh program and upper machine tool, which can be configured and redeveloped according to different customer project requirements. While providing basic software products, ZC also offers development services for the implementation of control unit basic software functions.

ZC.MuNiu Basic Software Platform can be applied to the development of automotive electronic control unit products using the Infineon TC4x series chips. For example:

Ø  New Energy Vehicle Controller

Ø  Zone Controller

Ø  Intelligent Driving Controller

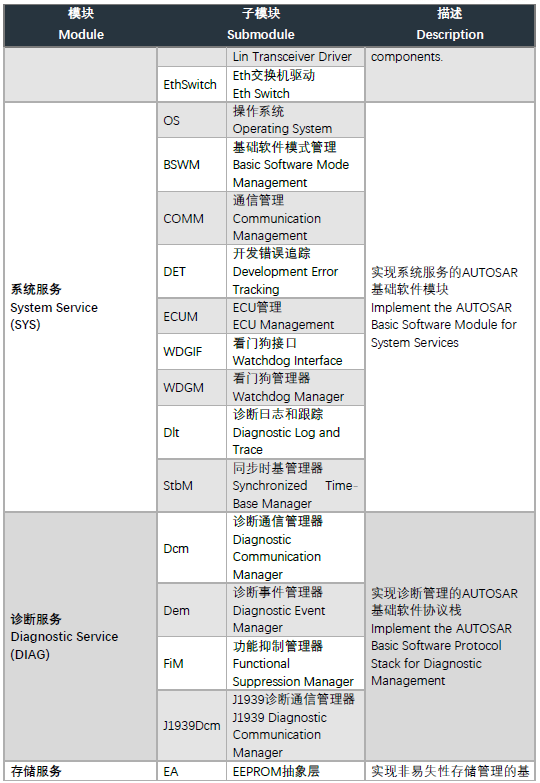

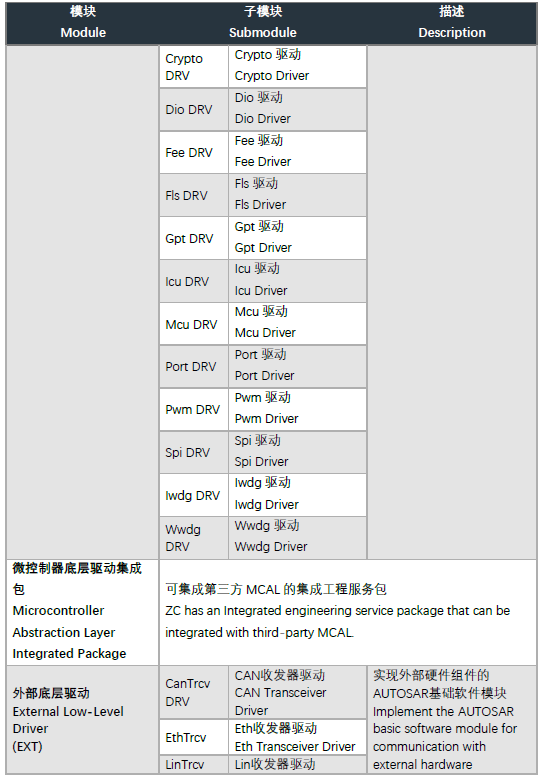

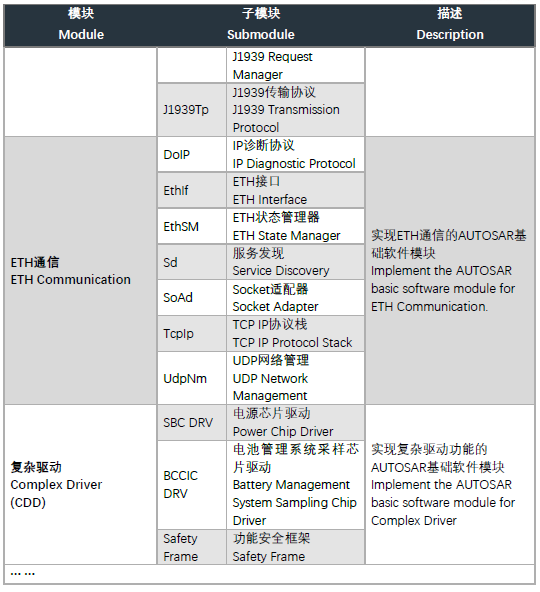

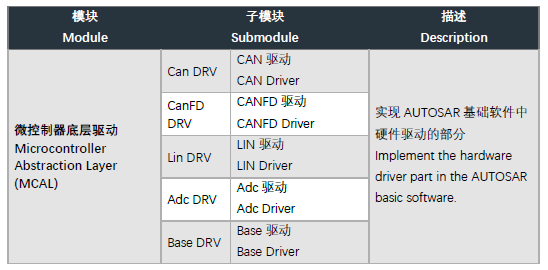

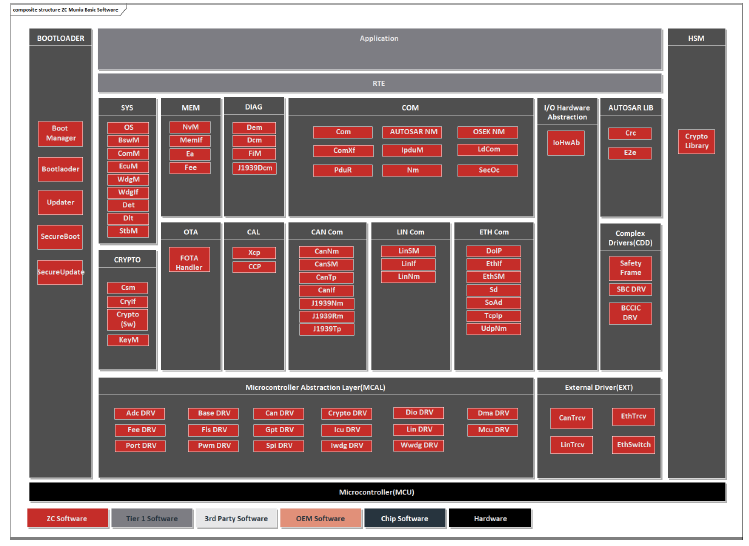

ZC.MUNIU BASIC SOFTWARE PLATFORM ARCHITECTURE

MUNIU SOFTWARE COPYRIGHT REGISTRATION CERTIFICATE
